Excitation Emission Spectra (EES) Database of CH radical A-X (0,0) transitions

Comment: Click on picture to enlarge it. Open files with left mouse button. Download files with right mouse button.

Grating: 100 lines/mm, only VIS excitation, Emissions: 290 to 705 nm, spectrograph entrance slit: 1000 mm

Rayleigh scattering removed with correct selection of ICCD-delay (ICCD opens after Rayleigh)

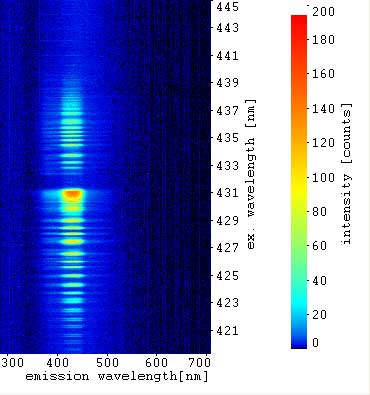

EES, point of measurement:

flame front (flame front of the flame)

Excitation wavelength:

UV: no UV excitation

VIS: 445,00 nm to 419,44 nm

Emission wavelength:

290 nm to 705 nm

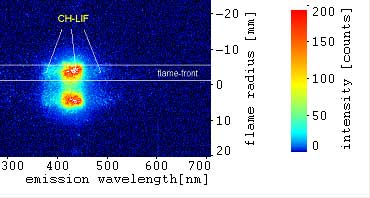

Single Image:

local distribution of signals inside the flame

Excitation wavelength:

UV: no UV excitation

VIS: 430,88 nm

Detected signals:

no Rayleigh scattering (ICCD opens after Rayleigh)

CH-LIF A-X / from A-X (0,0) excitation:

(starting at about 440,0 nm (0,0))

CH-LIF A-X emissions:

(431 nm)

Download common measurement report for detailed informations about flame, laser beam position, pulse energy, ICCD gain, etc:

Download MS Word file:

Download Davis file:

Download ASCII file:

CCD dynamic: 12 bit / ICCD gain: 9,9 / entrance slit: 1000 mm /sum of pulses: 50 /

UV pulse energy: about ... to ... mJ/pulse

Rayleigh scattering removed with correct selection of ICCD-delay (ICCD opens after Rayleigh)

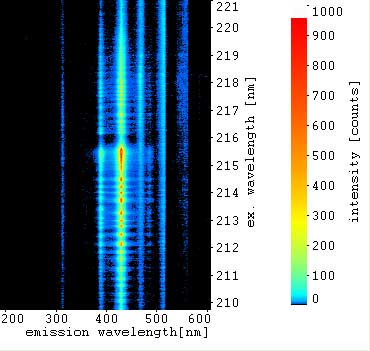

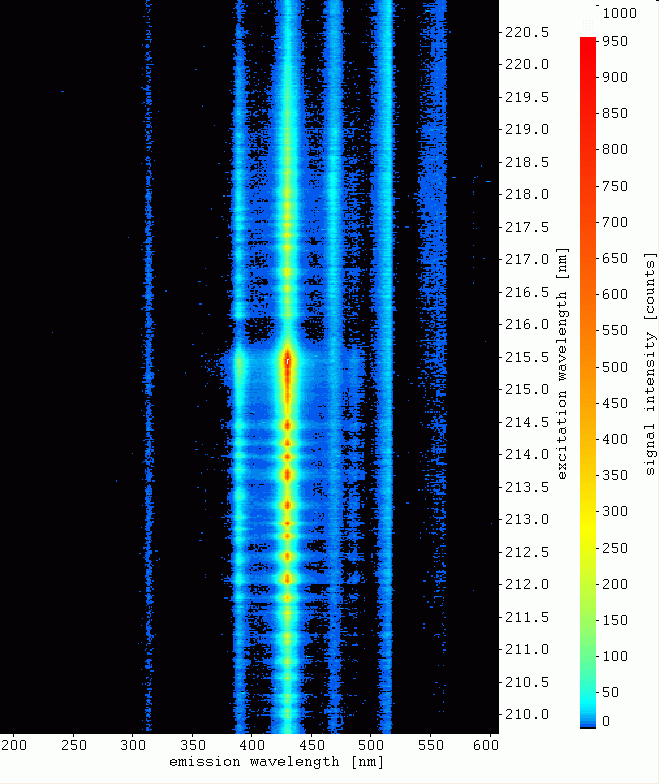

EES, point of measurement:

flame front (flame front of the flame)

Excitation wavelength:

UV: 221,00 nm to 209,72 nm

VIS: 442,00 nm to 419,44 nm

(UV and VIS simultaneously)

Emission wavelength:

190 nm to 605 nm

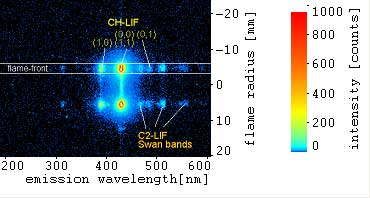

Single Image:

local distribution of signals inside the flame

Excitation wavelength:

UV: 215,44 nm

VIS: 430,88 nm

(UV and VIS simultaneously)

Detected signals:

no Rayleigh scattering (ICCD opens after Rayleigh)

CH-LIF A-X / from A-X (0,0) excitation:

(starting at about 440,0 nm (0,0))

CH-LIF A-X emissions:

(390 nm, 431 nm, 472 nm)

C2-LIF / Swan band emissions:

(473 nm, 516 nm, 563 nm)

Download common measurement report for detailed informations about flame, laser beam position, pulse energy, ICCD gain, etc:

Download MS Word file:

Download Davis file:

Download ASCII file:

CCD dynamic: 12 bit / ICCD gain: 9,9 / entrance slit: 100 mm /sum of pulses: 50 /

UV pulse energy: about 2,7 to 1,0 mJ/pulse

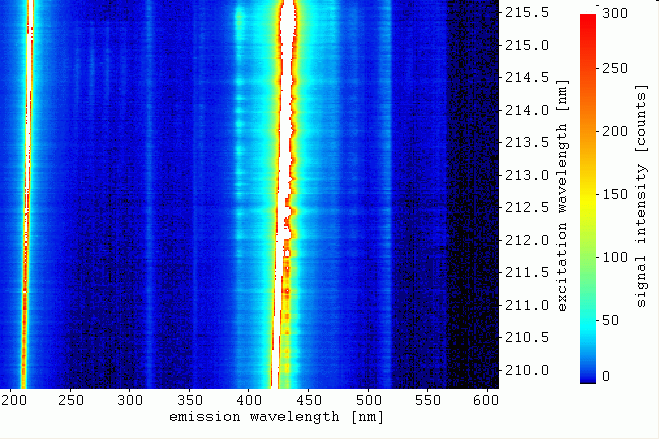

EES, point of measurement:

flame front (cone of the flame)

Excitation wavelength:

UV: 215,70 nm to 209,72 nm

VIS: 431,40 nm to 419,44 nm

(UV and VIS simultaneously)

Emission wavelength:

190 nm to 605 nm

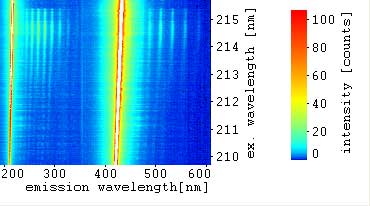

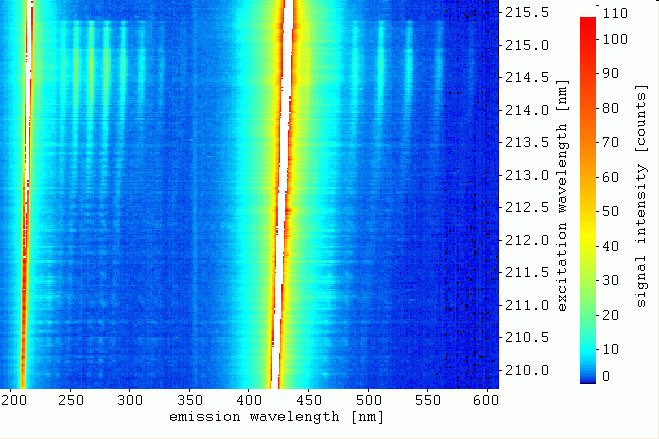

EES, point of measurement:

reaction zone (outer range of the flame)

Excitation wavelength:

UV: 215,70 nm to 209,72 nm

VIS: 431,40 nm to 419,44 nm

(UV and VIS simultaneously)

Emission wavelength:

190 nm to 605 nm

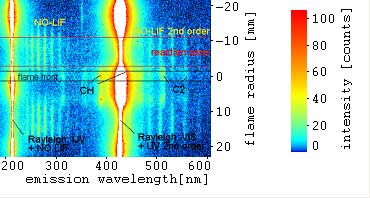

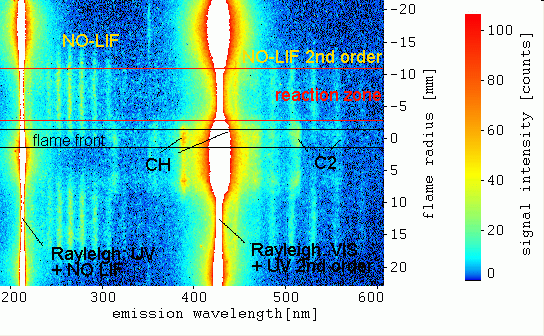

Single Image:

local distribution of signals inside the flame

Excitation wavelength:

UV: 214,46 nm

VIS: 428,92 nm

(UV and VIS simultaneously)

Detected signals:

Rayleigh scattering: UV (+ 2nd o.) and VIS

NO-LIF A-X / from A-X (1,0) excitation (weak)

CH-LIF A-X / from A-X (0,0) excitation:

(starting at about 440,0 nm (0,0))

CH-LIF A-X emissions:

(390 nm, 431 nm, 472 nm)

C2-LIF / Swan band emissions (see chapter C2)

Detected signals:

Rayleigh scattering: UV and VIS

NO-LIF A-X / from A-X (1,0) excitation:

(starting at 215,3 nm (1,0))

NO-LIF A-X emissions:

(327 nm, 311 nm, 295 nm, 281 nm, 268 nm, 256 nm, 245 nm, 234 nm, 225 nm, 215 nm)

Rayleigh and NO-LIF in 2nd order

Download common measurement report for detailed informations about flame, laser beam position, pulse energy, ICCD gain, etc:

Download MS Word file:

Download Davis file:

Download ASCII file:

Download Davis file:

Download ASCII file:

CCD dynamic: 12 bit / CCD gain: 5,8 / entrance slit: 100 mm / sum of pulses: 50 /

UV pulse energy: about 2,7 to 1,0 mJ/pulse
