CN-Radical (CN) - LIF:

Transition: B2S+ - X2S+ (0,1) band of CN

Appearance of the CN B-X bands: Degraded to the violet

Excitation wavelength: 421,6 to 419,8 nm

Flame/Burner: acetylene/oxygen (C2H2/O2) flame of a welding torch

Comment:  Click on picture to enlarge it. Open files with left mouse button. Download files with right mouse button.

Grating: 100 lines/mm, only VIS excitation, Emissions: 290 to 710 nm

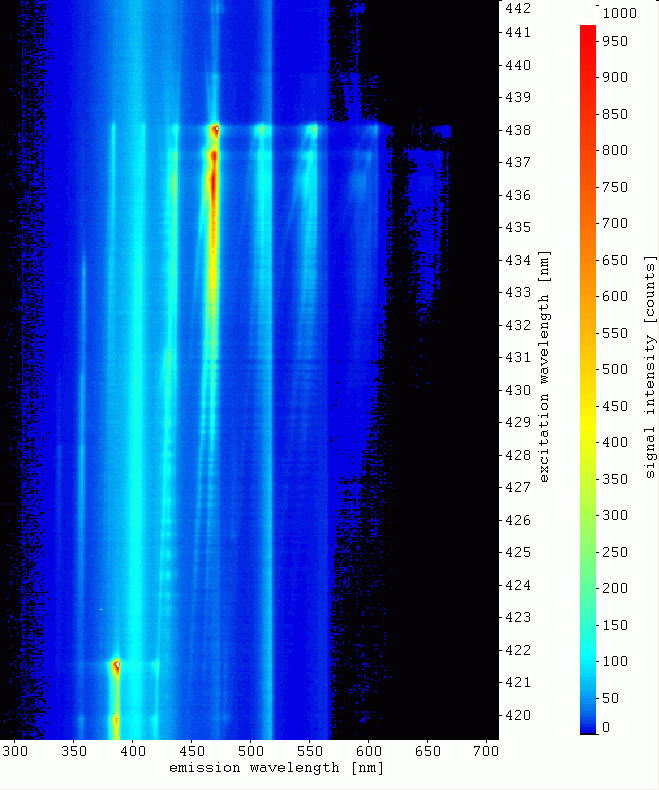

EES, point of measurement:

   center (inner cone of the flame)

Excitation wavelength:

   UV:  no UV excitation

   VIS: 442,00 nm to 419,24 nm

Emission wavelength:

   290 nm to 710 nm

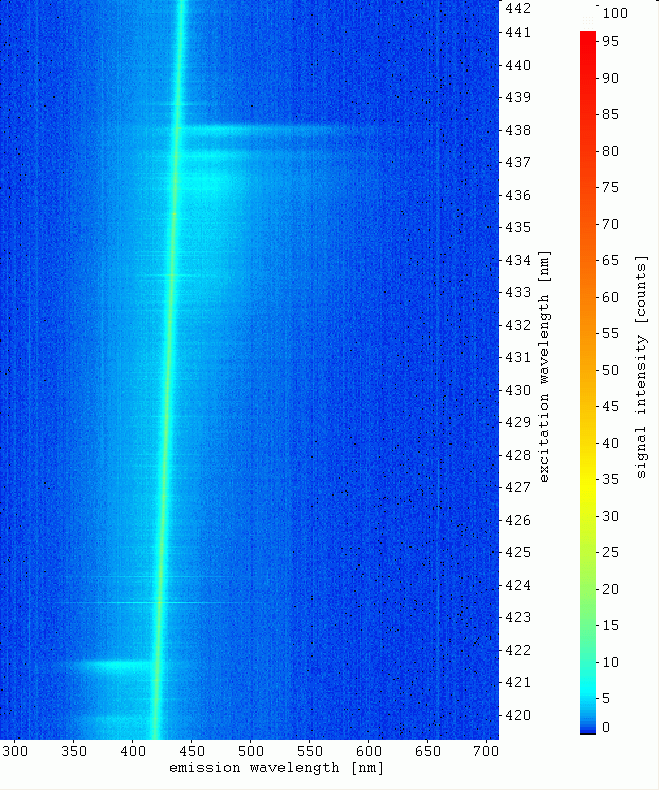

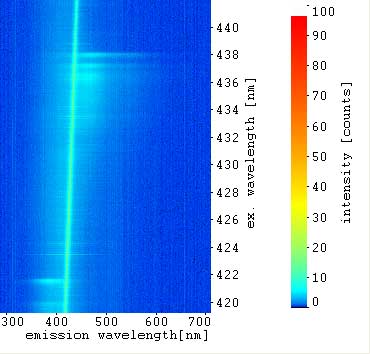

EES, point of measurement:

    off-center  (outer range of the flame)

Excitation wavelength:

   UV: no UV excitation

   VIS: 442,00 nm to 419,24 nm

Emission wavelength:

   290 nm to710 nm

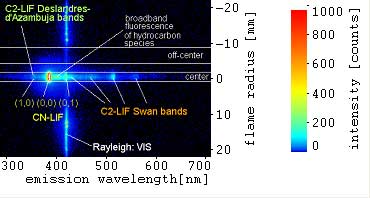

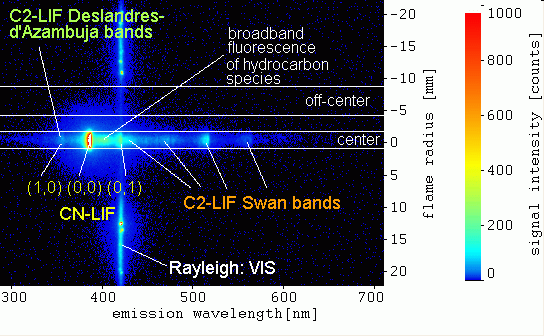

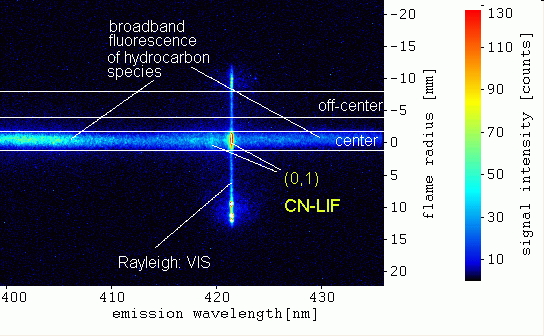

Single Image:

   local distribution of signals inside the flame

Excitation wavelength:

   UV: no UV excitation

   VIS: 421,60 nm

Detected signals:

   Rayleigh scattering: VIS

   CN-LIF B-X / from B-X (0,1) and (1,2) excitation:

      (starting at 421,6 nm (0,1) and  419,9 nm (1,2))

   CN-LIF / B-X emissions:

      (359 nm, 388 nm, 421 nm)

   C2-LIF d-a / from d-a (2,0), (3,1), (4,2) ... excitations:

      (Swan bands, starting at 438,0 nm)

   C2-LIF / Swan band emissions:

      (438 nm, 473 nm, 516 nm, 563 nm, 619 nm, 685 nm)

    C2-LIF C-A / from C-A (0,2), (1,3) ... excitations:

      (Deslandres-d'Azambuja bands, starting at 438,0 nm)

   C2-LIF / Deslandres d'Azambuja band emissions:

      (339 nm, 360 nm, 385 nm, 410 nm, 438 nm)

   broadband fluorescence of hydrocarbon species:

      (about 300 nm to 450 nm)

Detected signals:

   Rayleigh scattering: VIS

   C2-LIF d-a

   CN-LIF B-X

   no others

Download common measurement report for detailed informations about flame, laser beam position, pulse energy, ICCD gain, etc:

Download MS Word file:

Download Davis file:

Download ASCII file:

Download Davis file:

Download ASCII file:

CCD dynamic: 12 bit / ICCD gain: 7,5 / entrance slit: 50 mm / sum of pulses: 30 /

VIS pulse energy: about 26,8 to 22,0 mJ/pulse



Grating: 100 lines/mm, UV and VIS excitation, Emissions: 190 to 605 nm, part 2

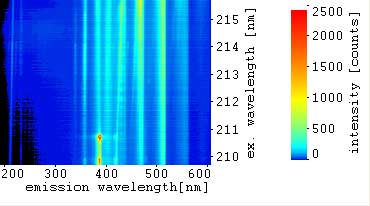

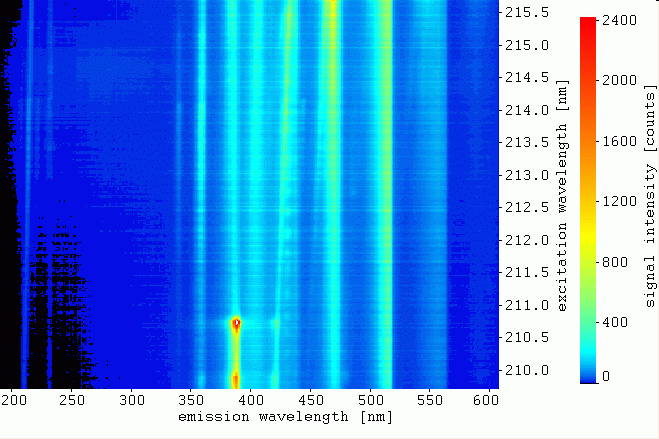

EES, point of measurement:

   center (inner cone of the flame)

Excitation wavelength:

   UV: 215,70 nm to 209,72 nm

   VIS: 431,40 nm to 420,44 nm

   (UV and VIS simultaneously)

Emission wavelength:

   190 nm to 605 nm

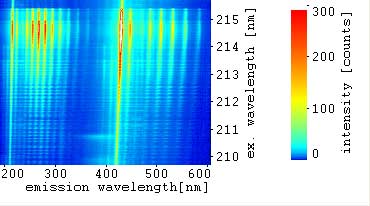

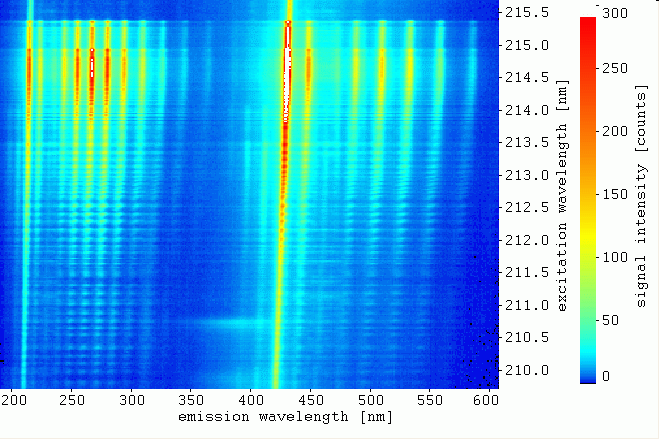

EES, point of measurement:

    off-center  (outer range of the flame)

Excitation wavelength:

  UV: 215,70 nm to 209,72 nm

   VIS: 431,40 nm to 420,44 nm

   (UV and VIS simultaneously)

Emission wavelength:

   190 nm to 605 nm

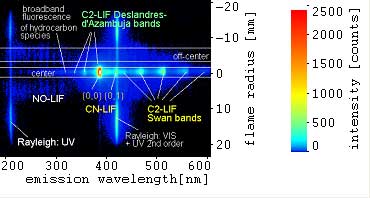

Single Image:

   local distribution of signals inside the flame

Excitation wavelength:

   UV: 210,74 nm

   VIS: 421,48 nm

   (UV and VIS simultaneously)

Detected signals:

   Rayleigh scattering: UV

   CN-LIF B-X / from B-X (0,1) and (1,2) excitation:

      (starting at 421,6 nm (0,1) and  419,9 nm (1,2))

   CN-LIF / B-X emissions:

      (359 nm, 388 nm, 421 nm)

   C2-LIF d-a / from d-a (2,0), (3,1), (4,2) ... excitations:

      (Swan bands, starting at 438,0 nm)

   C2-LIF / Swan band emissions:

      (438 nm, 473 nm, 516 nm, 563 nm, 619 nm)

    C2-LIF C-A / from C-A (0,2), (1,3) ... excitations:

      (Deslandres-d'Azambuja bands, starting at 438,0 nm)

   C2-LIF / Deslandres d'Azambuja band emissions:

      (339 nm, 360nm, 385 nm, 410 nm, 438 nm)

   C2-LIF D-X / from D-X (2,0), (3,1) ... excitations:

      (Mullikan bands, starting at about 217 nm)

   C2-LIF / Mullikan band emissions:

      (231 nm)

   C2-LIF E-A / from E-A (0,0), (1,1) ... excitations:

      (Freymark bands, starting at about 214,3 nm)

   C2-LIF / Freymark band emissions:

      (222 nm, 214 nm, 207 nm)

   broadband fluorescence of hydrocarbon species:

      (about 250 nm to 450 nm)

Detected signals:

   Rayleigh scattering: UV and VIS

   NO-LIF A-X / from A-X (1,0) and (2,1) excitations

   Rayleigh and NO-LIF in 2nd order

Download common measurement report for detailed informations about flame, laser beam position, pulse energy, ICCD gain, etc:

Download MS Word file:

Download Davis file:

Download ASCII file:

Download Davis file:

Download ASCII file:

CCD dynamic: 12 bit / ICCD gain: 7,3 / entrance slit: 100 mm / sum of pulses: 50 /

UV pulse energy: about 3,2 to 1,3 mJ/pulse

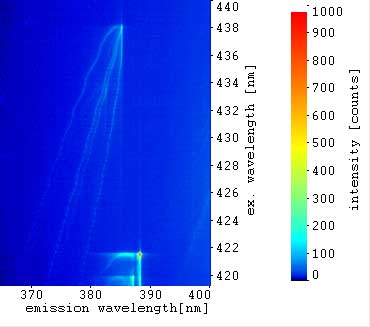

Grating: 1200 lines/mm, only VIS excitation, Emissions: 365 to 400 nm

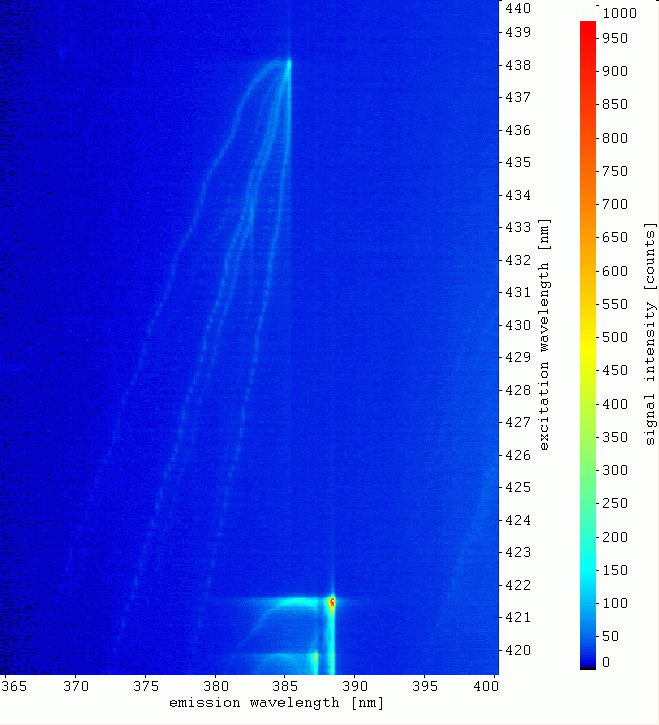

EES, point of measurement:

   center (inner cone of the flame)

Excitation wavelength:

   UV:  no UV excitation

   VIS: 440,00 nm to 419,24 nm

Emission wavelength:

   365 nm to 400 nm

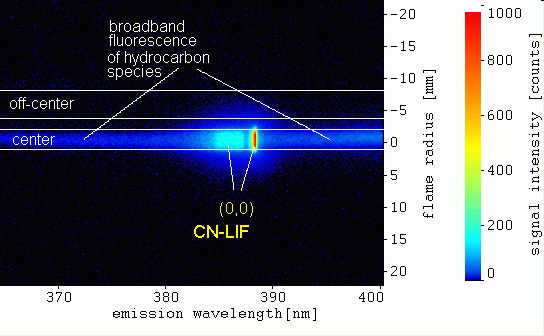

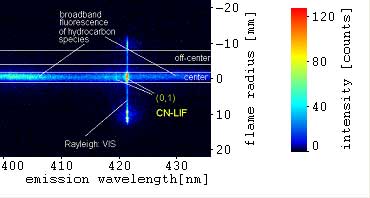

Single Image:

   local distribution of signals inside the flame

Excitation wavelength:

   UV: no UV excitation

   VIS: 421,48 nm

Detected signals:

   CN-LIF B-X / from B-X (0,1) and (1,2) excitations:

      (starting at 421,6 nm (0,1) and  419,9 nm (1,2))

   CN-LIF / B-X emissions:

      (388,3 nm, 387,2 nm)

   C2-LIF C-A / from C-A (0,2), (1,3) ... excitations:

      (Deslandres-d'Azambuja bands, starting at 438,0 nm)

   C2-LIF / Deslandres d'Azambuja band emissions:

      (385 nm)

   broadband fluorescence of hydrocarbon species:

      (emission wavelength: about 300 nm to 450 nm)

   (no signals detected in the off-center range of the flame)

Download common measurement report for detailed informations about flame, laser beam position, pulse energy, ICCD gain, etc:

Download MS Word file:

Download Davis file:

Download ASCII file:

CCD dynamic: 12 bit / ICCD gain: 8,3 / entrance slit: 50 mm / sum of pulses: 50 /

VIS pulse energy: about 27,4 to 23,8 mJ/pulse

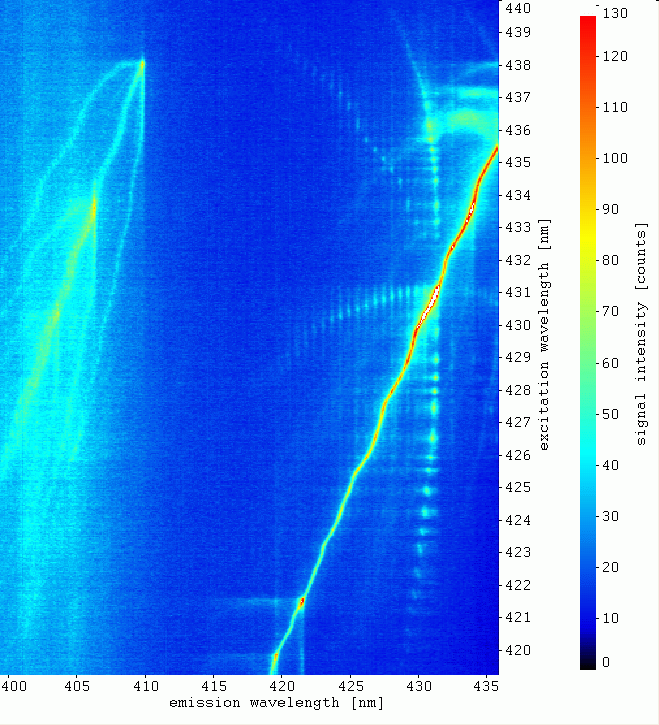

Grating: 1200 lines/mm, only VIS excitation, Emissions: 400 to 435 nm

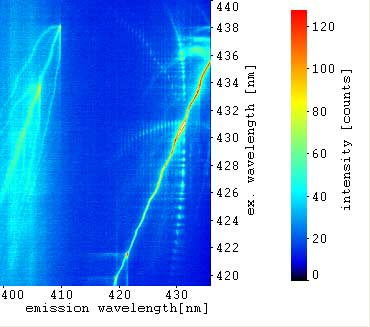

EES, point of measurement:

   center (inner cone of the flame)

Excitation wavelength:

   UV:  no UV excitation

   VIS: 440,00 nm to 419,24 nm

Emission wavelength:

   400 nm to 435 nm

Single Image:

   local distribution of signals inside the flame

Excitation wavelength:

   UV: no UV excitation

   VIS: 433,60 nm

Detected signals:

   Rayleigh scattering: VIS

   CN-LIF B-X / from B-X (0,1) and (1,2) excitations:

      (starting at 421,6 nm (0,1) and  419,9 nm (1,2))

   CN-LIF / B-X emissions:

      (421,4 nm, 419,5 nm)

   C2-LIF d-a / from d-a (2,0), (3,1), (4,2) ... excitations:

      (Swan bands, starting at 438,0 nm)

   C2-LIF / Swan band emissions:

      (438 nm)

    C2-LIF C-A / from C-A (0,2), (1,3) ... excitations:

      (Deslandres-d'Azambuja bands, starting at 438,0 nm)

   C2-LIF / Deslandres d'Azambuja band emissions:

      (410 nm, 438 nm)

   broadband fluorescence of hydrocarbon species:

      (emission wavelength: about 300 nm to 450 nm)

   (no signals detected in the off-center range of the flame)

Download common measurement report for detailed informations about flame, laser beam position, pulse energy, ICCD gain, etc:

Download MS Word file:

Download Davis file:

Download ASCII file:

CCD dynamic: 12 bit / ICCD gain: 8,3 / entrance slit: 50 mm / sum of pulses: 50 /

VIS pulse energy: about 27,6 to 23,6 mJ/pulse
