Grating: 100 lines/mm, only UV excitation, Emissions: 190 to 605 nm, glass filter in front of spectrograph

EES, point of measurement:

center (center of the nozzle)

Excitation wavelength:

UV: 230,34 nm to 209,94 nm

VIS: no VIS excitation

Emission wavelength:

190 nm to 605 nm

Single Image:

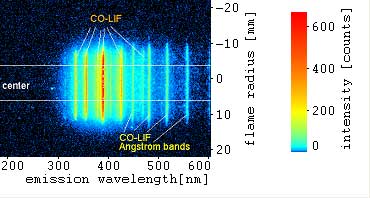

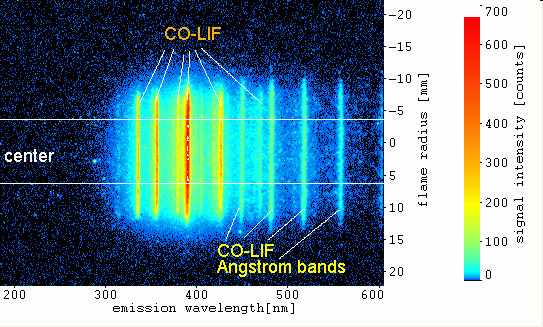

local distribution of signals 2 mm above the nozzle

Excitation wavelength:

UV: 230,11 nm

VIS: no UV excitation

Detected signals:

CO-LIF B-X / from B-X (0,0) excitation:

(two-photon LIF - Hopfield-Birge bands, starting at 230,11 nm, degraded to the violet)

CO-LIF emissions (from B-X (0,0) excitation):

CO-LIF Angstrom bands: 451 nm, 483 nm, 520 nm, 561 nm, ...

further emissions: 336 nm, 356 nm, 389 nm, 405 nm, 427 nm

Download common measurement report for detailed informations about flame, laser beam position, pulse energy, ICCD gain, etc:

Download MS Word file:

Download Davis file:

Download ASCII file:

CCD dynamic: 12 bit / ICCD gain: 9,8 / entrance slit: 150 mm /sum of pulses: 50 /

UV pulse energy: about 4,1 to ... mJ/pulse
