Nitrogen
Monoxide (NO) - LIF:
Transition:
A2S+
- X2P
(0,0) band of NO
Appearance
of the NO g-bands:
Degraded to the violet
Excitation
wavelength: 227,5 to 221,0 nm
Gas
composition:
NO (18 ppm), CO (14 ppm), SO2
(17 ppm), rest N2,
at ambient conditions (293 K)
Comment: Click
on picture to enlarge it. Open files with left mouse button. Download files with
right mouse button.
Grating:
1200 lines/mm, UV and VIS excitation, Emissions: 230 to 265 nm
|
EES,
point of measurement:
center
(center of the nozzle)
Excitation
wavelength:
UV:
227,50 nm to 221,00 nm
VIS:
455,00 nm to 442,00 nm
(UV and VIS simultaneously)
Emission
wavelength:
230
nm to 265 nm |
Single
Image:

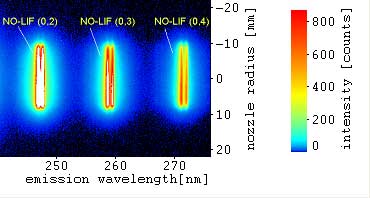

local distribution of signals 2 mm above the nozzle
Excitation
wavelength:
UV: 226,00 nm
VIS: 452,00 nm
(UV and VIS simultaneously)
|
 |
 |
|
Detected
signals:
NO-LIF A-X / from A-X (0,0) excitation
(starting
at: 226,9 nm (0,0))
NO-LIF A-X emissions:
(260 nm,
248 nm, 237 nm)
|
Download
common measurement report for detailed informations about
flame, laser beam position, pulse energy, ICCD gain, etc:
Download
MS Word file:
|
|
Download
Davis file:
Download
ASCII file:
|
CCD
dynamic: 12 bit / ICCD gain: 7,0 / entrance slit: 80 mm
/ sum of pulses: 50 /
UV
pulse energy: about 4,1 to 3,1 mJ/pulse
|
Grating:
1200 lines/mm, UV excitation, Single Images
Detected
signals:
Rayleigh
scattering: UV
NO-LIF A-X / from A-X (0,0) excitation
|
Single
Image:
local distribution of signals 2 mm above the nozzle
Excitation
wavelength:
UV: 226,07 nm
Emission
wavelength:
205
nm to 240 nm
Download
Davis file:
Download
ASCII file:
CCD
dynamic: 12 bit / ICCD gain: 6,7 / entrance slit: 80 mm
/ sum of pulses: 50 /
UV
pulse energy: about 4,1 mJ/pulse |
Detected
signals:
NO-LIF A-X / from A-X (0,0) excitation
|
Single

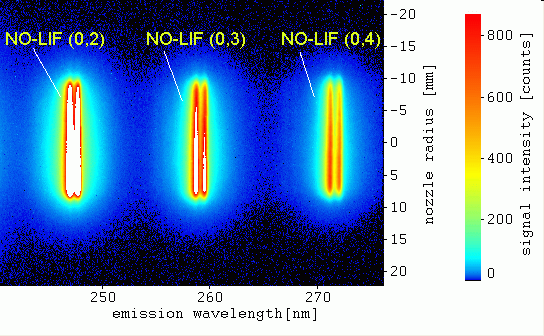

Image:
local distribution of signals 2 mm above the nozzle
Excitation
wavelength:
UV: 226,07 nm
Emission
wavelength:
240
nm to 275 nm
Download
Davis file:
Download
ASCII file:
CCD
dynamic: 12 bit / ICCD gain: 6,7 / entrance slit: 80 mm
/ sum of pulses: 50 /
UV
pulse energy: about 4,1 mJ/pulse |
Detected
signals:
NO-LIF A-X / from A-X (0,0) excitation
|
Single

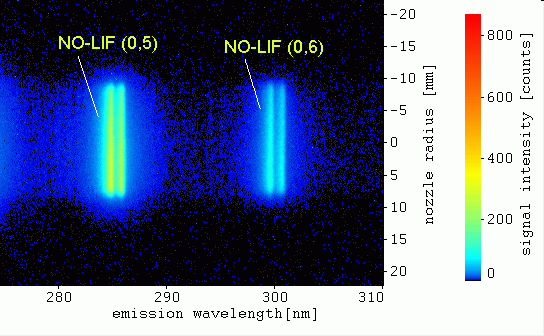

Image:
local distribution of signals 2 mm above the nozzle
Excitation
wavelength:
UV: 226,07 nm
Emission
wavelength:
275
nm to 310 nm
Download
Davis file:
Download
ASCII file:
CCD
dynamic: 12 bit / ICCD gain: 6,7 / entrance slit: 80 mm
/ sum of pulses: 50 /
UV
pulse energy: about 4,1 mJ/pulse |
Detected
signals:
NO-LIF A-X / from A-X (0,0) excitation
|
Single
Image:

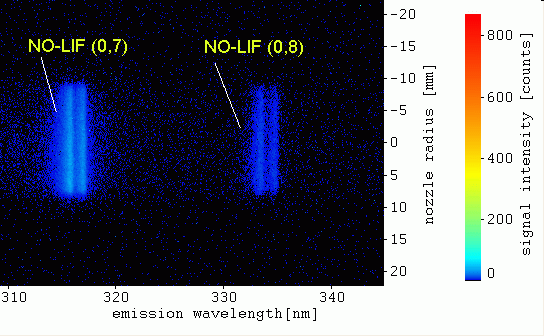

local distribution of signals 2 mm above the nozzle
Excitation
wavelength:
UV: 226,07 nm
Emission
wavelength:
310
nm to 345 nm
Download
Davis file:
Download
ASCII file:
CCD
dynamic: 12 bit / ICCD gain: 6,7 / entrance slit: 80 mm
/ sum of pulses: 50 /
UV
pulse energy: about 4,1 mJ/pulse |
