EES, point of measurement:

   center (center of the flame)

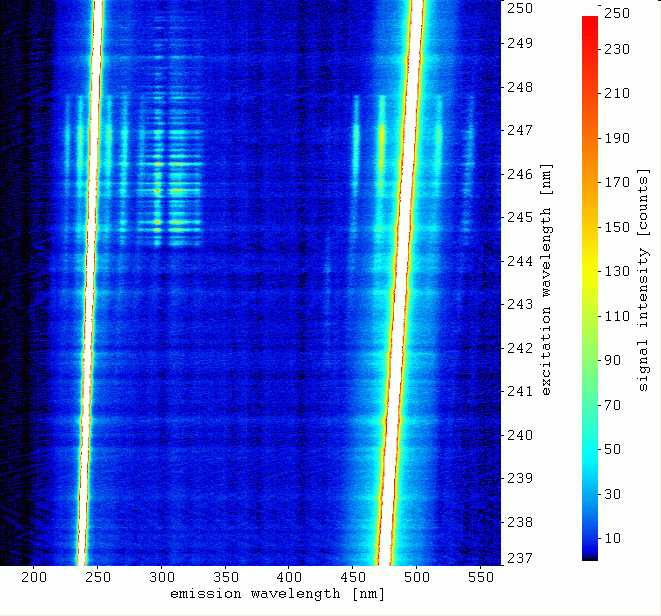

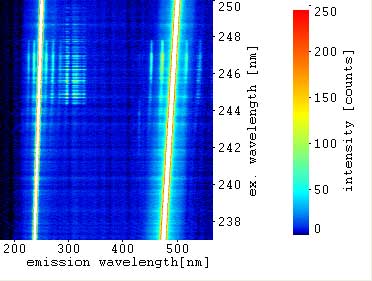

Excitation wavelength:

   UV:  250,00 nm to 237,00 nm

   VIS: 500,00 nm to 474,00 nm

   (UV and VIS simultaneously)

Emission wavelength:

   175 nm to 565 nm

Single Image:

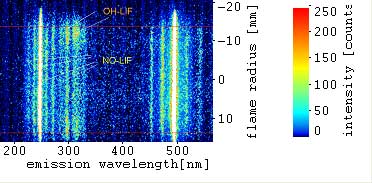

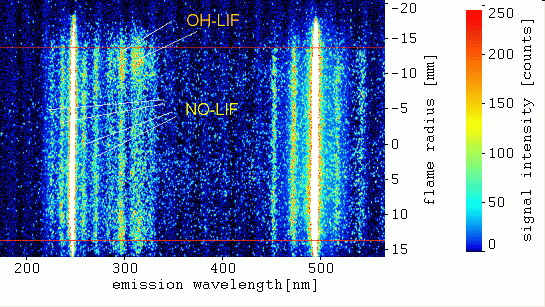

   local distribution of signals inside the flame

Excitation wavelength:

   UV: 246,96 nm

   VIS: 493,92 nm

   (UV and VIS simultaneously)

Detected signals:

   Rayleigh scattering: UV and VIS

   NO-LIF A-X / from A-X (0,2) and (1,3) excitations:

(starting at 247,8 nm (0,2) and 244,6 nm (1,3))

   NO-LIF A-X emissions:

(286 nm, 272 nm, 260 nm, 248 nm, 237 nm, 227 nm, 215 nm)

   OH-LIF A-X / from A-X (3,0) excitation:

(starting at: 244,3 nm (3,0))

   OH-LIF A-X emissions:

(281 - 303 nm, 305 - 330 nm)

   Rayleigh, NO-LIF and OH-LIF in 2nd order

Download common measurement report for detailed informations about flame, laser beam position, pulse energy, ICCD gain, etc:

Download MS Word file:

Download Davis file:

Download ASCII file:

CCD dynamic: 12 bit / ICCD gain: 9,0 / entrance slit: 80 mm / sum of pulses: 80 /

UV pulse energy: about 4,3 to 3,6 mJ/pulse
