Nitrogen Monoxide (NO) - LIF:

Transition: A2S+ - X2P (0,2) and (1,3) bands of NO

Appearance of the NO g-bands: Degraded to the violet

Excitation wavelength: 248,0 to 237,2 nm

Flame/Burner: hydrogen/oxygen (H2/O2) flame of a welding torch

Comment:  Click on picture to enlarge it. Open files with left mouse button. Download files with right mouse button.

Grating: 100 lines/mm, UV and VIS excitation, Emissions: 180 to 570 nm, CCD dynamic: 16 bit, Laser beam 60 mm above torch, cone height: 20 mm

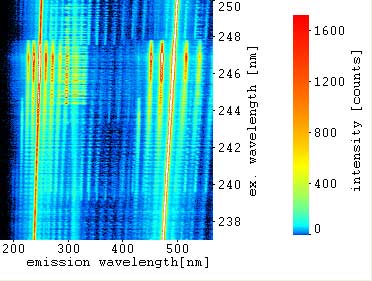

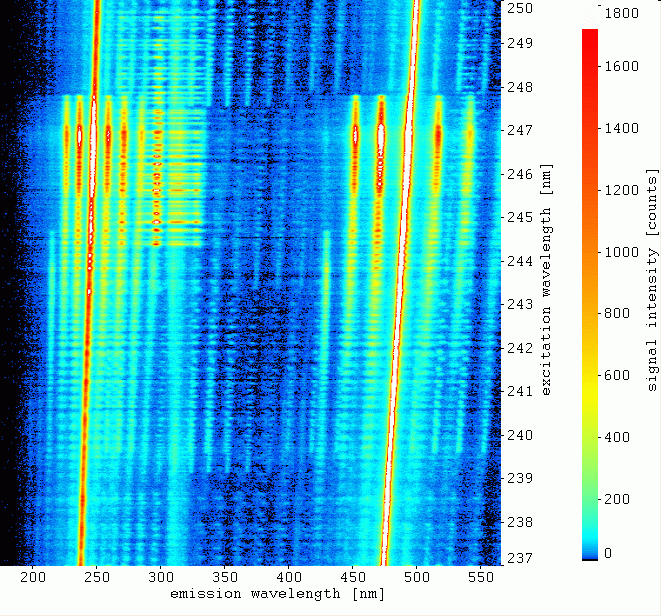

EES, point of measurement:

   off-center (outer range of the flame)

   laser beam 60 mm above torch, cone height: 20 mm

Excitation wavelength:

   UV:  250,00 nm to 237,00 nm

   VIS: 500,00 nm to 474,00 nm

   (UV and VIS simultaneously)

Emission wavelength:

   180 nm to 570 nm

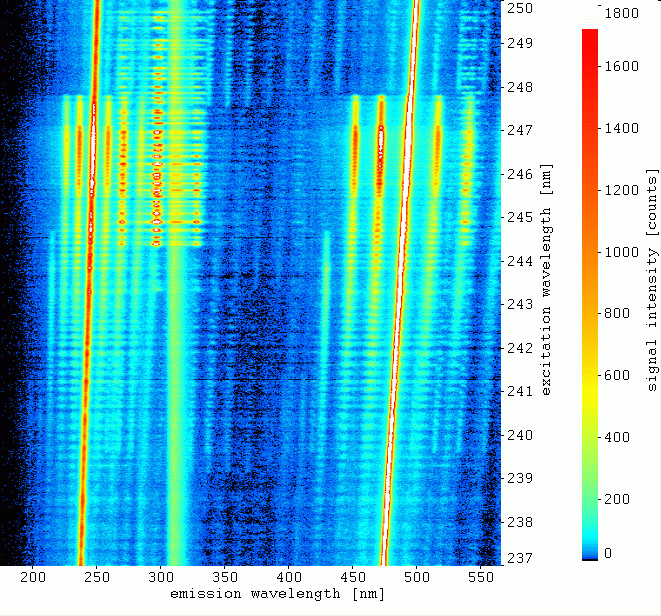

EES, point of measurement:

   center  (inner range of the flame)

   laser beam 60 mm above torch, cone height: 20 mm

Excitation wavelength:

   UV:  250,00 nm to 237,00 nm

   VIS: 500,00 nm to 474,00 nm

   (UV and VIS simultaneously)

Emission wavelength:

   180 nm to 570 nm

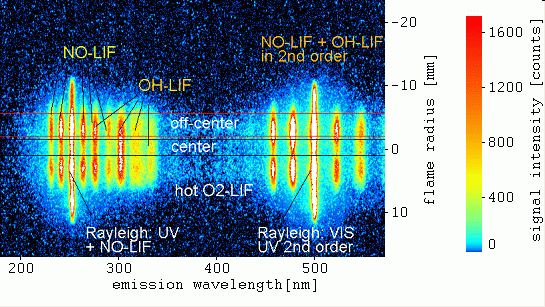

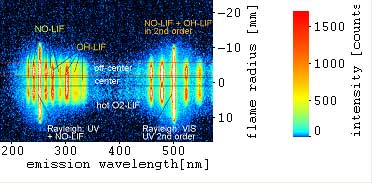

Single Image:

   local distribution of signals inside the flame

Excitation wavelength:

   UV: 246,96 nm

   VIS: 493,92 nm

   (UV and VIS simultaneously)

Detected signals:

   Rayleigh scattering: UV and VIS

   NO-LIF A-X / from A-X (0,2) and (1,3) excitations:

(starting at 247,8 nm (0,2) and 244,6 nm (1,3))

   NO-LIF A-X emissions:

(301 nm, 286 nm, 272 nm, 260 nm, 248 nm, 237 nm, 227 nm, 215 nm)

   OH-LIF A-X / from A-X (3,0) excitation:

(starting at: 244,3 nm (3,0))

   OH-LIF A-X emissions:

(265 - 275 nm, 281 - 303 nm, 305 - 330 nm)

   hot O2-LIF (see also chapter O2)

   OH self emission (at about 310 nm)

   Rayleigh, NO-LIF, O2-LIF and OH-LIF in 2nd order

Detected signals:

   Rayleigh scattering: UV and VIS

   NO-LIF A-X / from A-X (0,2) and (1,3) excitations

   OH-LIF A-X / from A-X (3,0) excitation

   hot O2-LIF (see also chapter O2)

   OH self emission (at about 310 nm)

   Rayleigh, NO-LIF, O2-LIF and OH-LIF in 2nd order

Download common measurement report for detailed informations about flame, laser beam position, pulse energy, ICCD gain, etc:

Download MS Word file:

Download Davis file:

Download ASCII file:

Download Davis file:

Download ASCII file:

CCD dynamic: 16 bit / ICCD gain: 8,0 / entrance slit: 80 mm / sum of pulses: 80 /

UV pulse energy: about  4,6 to 4,1 mJ/pulse

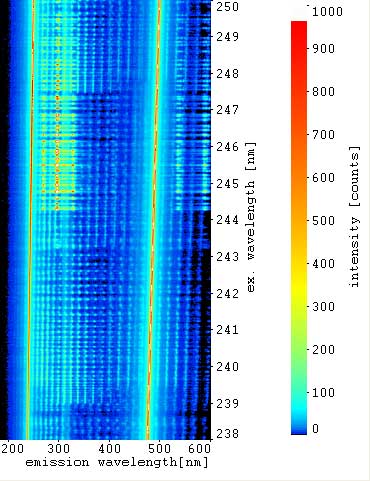

Grating: 100 lines/mm, UV and VIS excitation, Emissions: 185 to 600 nm, Laser beam 27 mm above torch, cone height: 10 mm

EES, point of measurement:

   center (center of the flame)

   laser beam 27 mm above torch, cone height: 10 mm

Excitation wavelength:

   UV:  250,00 nm to 237,00 nm

   VIS: 500,00 nm to 474,00 nm

   (UV and VIS simultaneously)

Emission wavelength:

   185 nm to600 nm

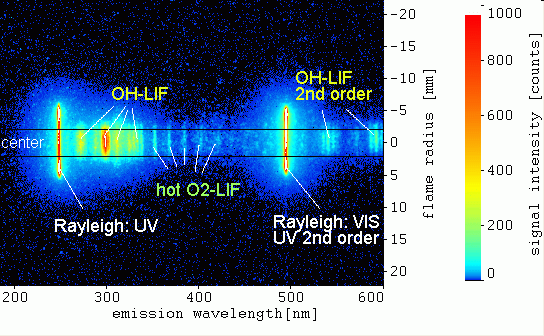

Single Image:

   local distribution of signals inside the flame

Excitation wavelength:

   UV: 247,57 nm

   VIS: 495,14 nm

   (UV and VIS simultaneously)

Detected signals:

   Rayleigh scattering: UV and VIS

   OH-LIF A-X / from A-X (3,0) excitation:

(starting at: 244,3 nm (3,0))

   OH-LIF A-X emissions:

(265 - 275 nm, 281 - 303 nm, 305 - 330 nm)

   hot O2-LIF (see also chapter O2)

   OH self emission (at about 310 nm) (weak)

   Rayleigh, O2-LIF and OH-LIF in 2nd order

Download common measurement report for detailed informations about flame, laser beam position, pulse energy, ICCD gain, etc:

Download MS Word file:

Download Davis file:

Download ASCII file:

CCD dynamic: 12 bit / ICCD gain: 9,9 / entrance slit: 80 mm /sum of pulses: 50 /

UV pulse energy: not measured



Grating: 100 lines/mm, UV and VIS excitation, Emissions: 180 to 600 nm, Laser beam 40 mm above torch, cone height: 20 mm

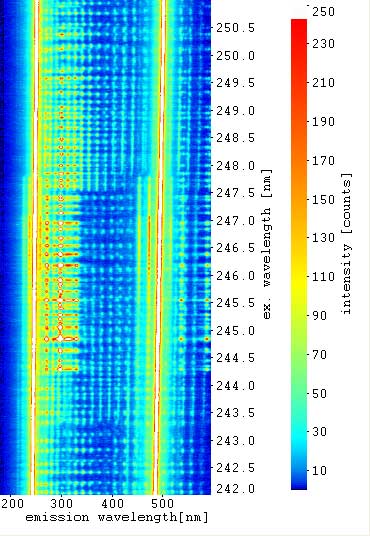

EES, point of measurement:

   center (center of the flame)

   laser beam 40 mm above torch, cone height: 20 mm

Excitation wavelength:

   UV:  251,00 nm to 242,00 nm

   VIS: 502,00 nm to 484,00 nm

   (UV and VIS simultaneously)

Emission wavelength:

   180 nm to 600 nm

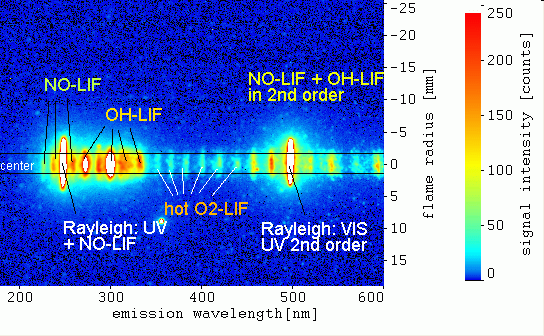

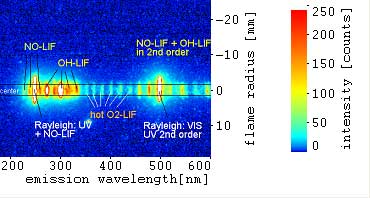

Single Image:

   local distribution of signals inside the flame

Excitation wavelength:

   UV: 246,53 nm

   VIS: 493,06 nm

   (UV and VIS simultaneously)

Detected signals:

   Rayleigh scattering: UV and VIS

   NO-LIF A-X / from A-X (0,2) excitation:

(starting at 247,8 nm (0,2))

   NO-LIF A-X emissions:

(272 nm, 260 nm, 248 nm, 237 nm, 227 nm)

   OH-LIF A-X / from A-X (3,0) excitation:

(starting at: 244,3 nm (3,0))

   OH-LIF A-X emissions:

(265 - 275 nm, 281 - 303 nm, 305 - 330 nm)

   hot O2-LIF (see also chapter O2)

   Rayleigh, NO-LIF, O2-LIF and OH-LIF in 2nd order

Download common measurement report for detailed informations about flame, laser beam position, pulse energy, ICCD gain, etc:

Download MS Word file:

Download Davis file:

Download ASCII file:

CCD dynamic: 12 bit / ICCD gain: 9,7 / entrance slit: 50 mm /sum of pulses: 60 /

UV pulse energy: not measured

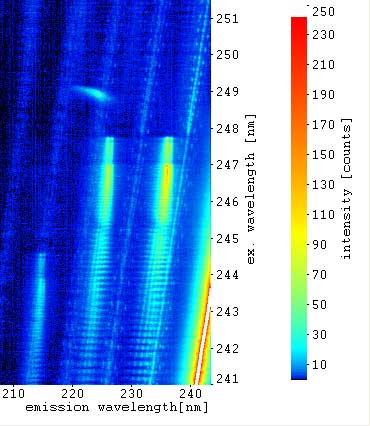

Grating: 1200 lines/mm, UV and VIS excitation, Emissions: 205 to 240 nm

EES, point of measurement:

   center (center of the flame)

Excitation wavelength:

   UV:  251,50 nm to 241,00 nm

   VIS: 503,00 nm to 482,00 nm

   (UV and VIS simultaneously)

Emission wavelength:

   205 nm to 240 nm

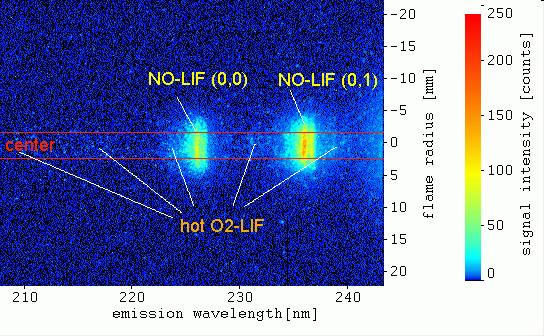

Single Image:

   local distribution of signals inside the flame

Excitation wavelength:

   UV: 247,00 nm

   VIS: 494,00 nm

   (UV and VIS simultaneously)

Detected signals:

   Rayleigh scattering: UV

   NO-LIF A-X / from A-X (0,2) and (1,3) excitations:

(starting at 247,8 nm (0,2) and 244,6 nm (1,3))

   NO-LIF A-X emissions:

(starting at: 237 nm, 227 nm, 215 nm)

   hot O2-LIF (see also chapter O2)

  spectrograph error at about 249 nm ex. wavelength

Download common measurement report for detailed informations about flame, laser beam position, pulse energy, ICCD gain, etc:

Download MS Word file:

Download Davis file:

Download ASCII file:

CCD dynamic: 12 bit / ICCD gain: 9,9 / entrance slit: 80 mm /sum of pulses: 50 /

UV pulse energy: not measured

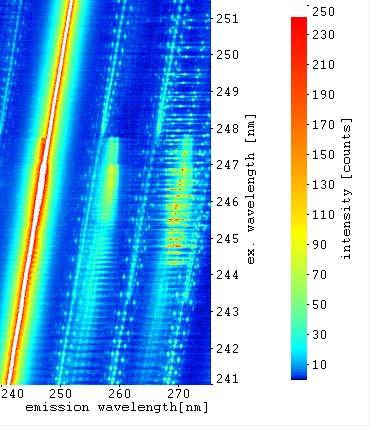

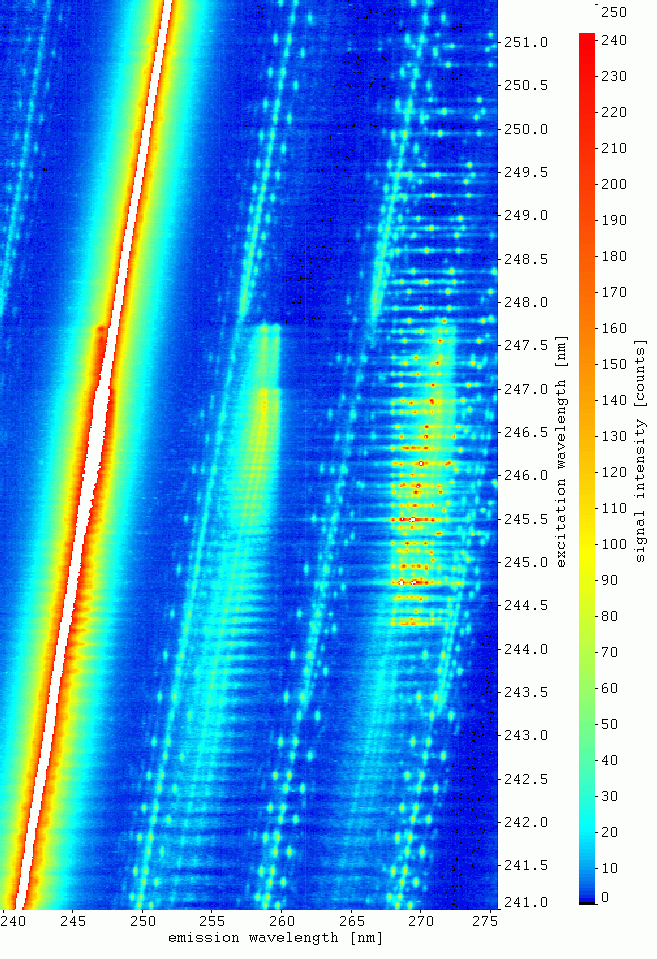

Grating: 1200 lines/mm, UV and VIS excitation, Emissions: 240 to 275 nm

EES, point of measurement:

   center (center of the flame)

Excitation wavelength:

   UV:  251,50 nm to 241,00 nm

   VIS: 503,00 nm to 482,00 nm

   (UV and VIS simultaneously)

Emission wavelength:

   240 nm to 275 nm

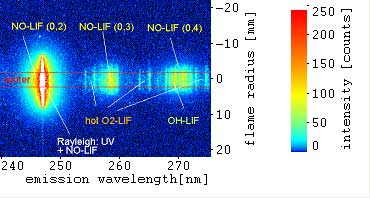

Single Image:

   local distribution of signals inside the flame

Excitation wavelength:

   UV: 246,73 nm

   VIS: 493,46 nm

   (UV and VIS simultaneously)

Detected signals:

   Rayleigh scattering: UV

   NO-LIF A-X / from A-X (0,2) and (1,3) excitations:

(starting at 247,8 nm (0,2) and 244,6 nm (1,3))

   NO-LIF A-X emissions:

(272 nm, 260 nm, 248 nm)

   OH-LIF A-X / from A-X (3,0) excitation:

(starting at: 244,3 nm (3,0))

   OH-LIF A-X emissions:

(265 - 275 nm)

   hot O2-LIF (see also chapter O2)

Download common measurement report for detailed informations about flame, laser beam position, pulse energy, ICCD gain, etc:

Download MS Word file:

Download Davis file:

Download ASCII file:

CCD dynamic: 12 bit / ICCD gain: 9,9 / entrance slit: 80 mm /sum of pulses: 50 /

UV pulse energy: not measured

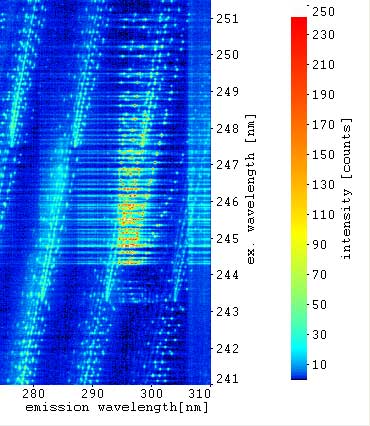

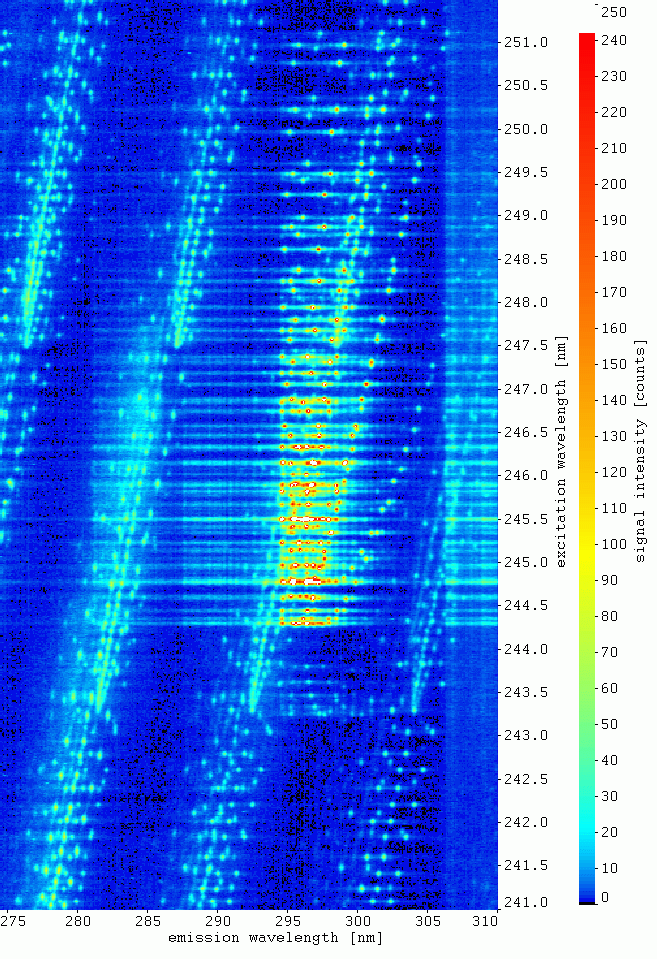

Grating: 1200 lines/mm, UV and VIS excitation, Emissions: 275 to 310 nm

EES, point of measurement:

   center (center of the flame)

Excitation wavelength:

   UV:  251,50 nm to 241,00 nm

   VIS: 503,00 nm to 482,00 nm

   (UV and VIS simultaneously)

Emission wavelength:

   275 nm to 310 nm

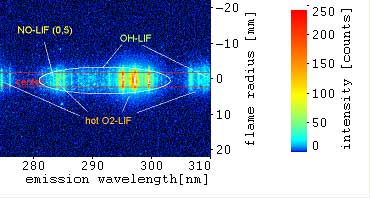

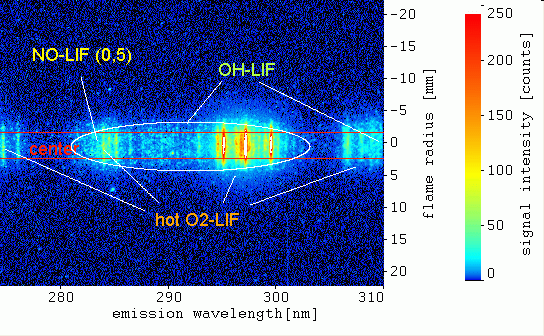

Single Image:

   local distribution of signals inside the flame

Excitation wavelength:

   UV: 246,73 nm

   VIS: 493,46 nm

   (UV and VIS simultaneously)

Detected signals:

   NO-LIF A-X / from A-X (0,2)excitations:

(starting at 247,8 nm (0,2))

   NO-LIF A-X emissions:

(286 nm)

   OH-LIF A-X / from A-X (3,0) excitation:

(starting at: 243,2 nm (3,0))

   OH-LIF A-X emissions:

(281 - 303 nm, 305 - ... nm)

   hot O2-LIF (see also chapter O2)

   OH self emission (at about 310 nm) (weak)

Download common measurement report for detailed informations about flame, laser beam position, pulse energy, ICCD gain, etc:

Download MS Word file:

Download Davis file:

Download ASCII file:

CCD dynamic: 12 bit / ICCD gain: 9,9 / entrance slit: 80 mm /sum of pulses: 50 /

UV pulse energy: not measured

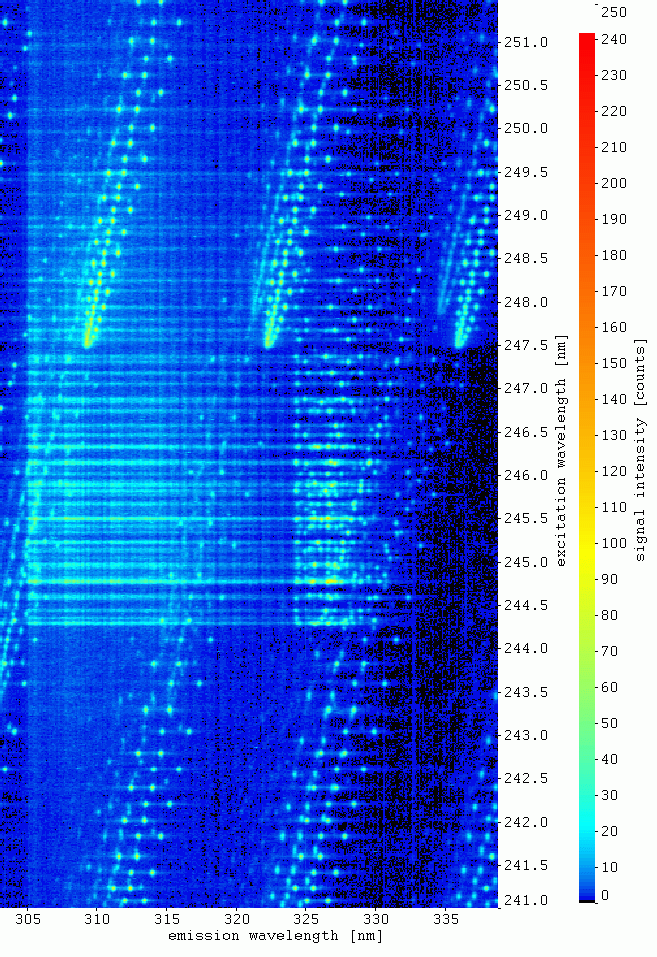

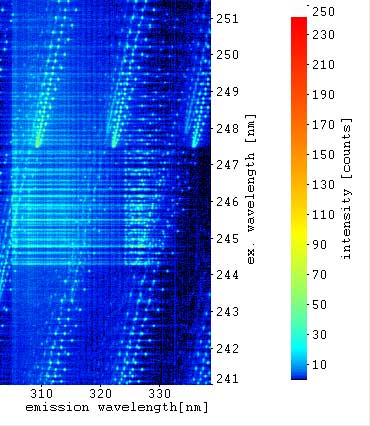

Grating: 1200 lines/mm, UV and VIS excitation, Emissions: 310 to 345 nm

EES, point of measurement:

   center (center of the flame)

Excitation wavelength:

   UV:  251,50 nm to 241,00 nm

   VIS: 503,00 nm to 482,00 nm

   (UV and VIS simultaneously)

Emission wavelength:

   310 nm to 345 nm

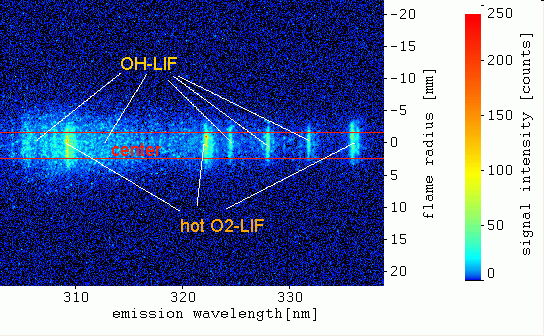

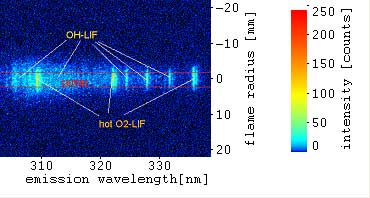

Single Image:

   local distribution of signals inside the flame

Excitation wavelength:

   UV: 247,585 nm

   VIS: 495,170 nm

   (UV and VIS simultaneously)

Detected signals:

   OH-LIF A-X / from A-X (3,0) excitation:

(starting at: 244,3 nm (3,0))

   OH-LIF A-X emissions:

(305 - 330 nm)

   hot O2-LIF (see also chapter O2)

   OH self emission (weak)

Download common measurement report for detailed informations about flame, laser beam position, pulse energy, ICCD gain, etc:

Download MS Word file:

Download Davis file:

Download ASCII file:

CCD dynamic: 12 bit / ICCD gain: 9,9 / entrance slit: 80 mm /sum of pulses: 50 /

UV pulse energy: not measured
