Nitrogen
Monoxide (NO) - LIF:
Transition:
A2S+
- X2P
(1,0), (2,1) and (3,2) bands of NO
Appearance
of the NO g-bands:
Degraded to the violet
Excitation
wavelength: 215,6 to 210,0 nm
Flame/Burner:
hydrogen/oxygen (H2/O2) flame of a welding torch
Comment: Click
on picture to enlarge it. Open files with left mouse button. Download
files with right mouse button.

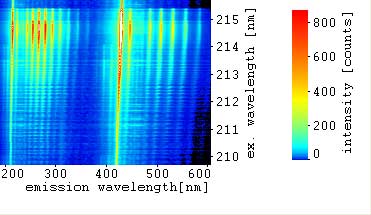

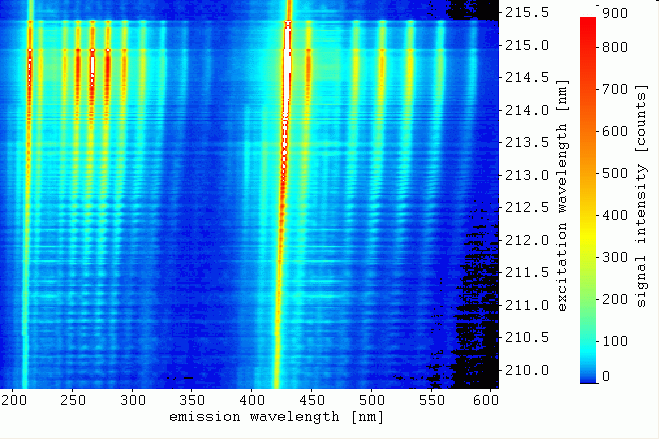

Grating:
100 lines/mm, UV and VIS excitation, Emissions: 190 to 605 nm
|
EES,
point
of measurement:
center
(center of the flame)
Excitation
wavelength:
UV: 215,70 nm to 209,72 nm
VIS: 431,40 nm to 419,44 nm
(UV and VIS simultaneously)
Emission
wavelength:
190 nm to 605 nm |

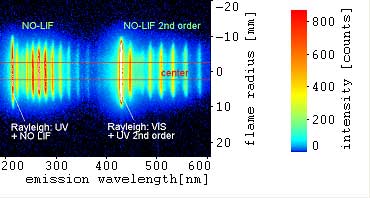

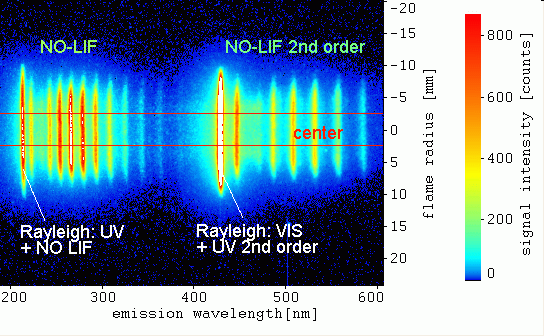

Single
Image:
local distribution of signals inside the flame
Excitation
wavelength:
UV: 214,70 nm
VIS: 429,40 nm
(UV and VIS simultaneously)
|
 |
 |
|
Detected
signals:
Rayleigh
scattering: UV and VIS
NO-LIF A-X / from A-X (1,0) and (2,1) excitations:
(starting
at 215,3 nm (1,0) and 214,0 nm (2,1))
NO-LIF A-X emissions:
(366 nm,
346 nm, 327 nm, 311 nm, 295 nm, 281 nm, 268 nm,
256 nm, 245 nm, 234 nm, 225 nm, 215 nm, 205 nm)
hot O2-LIF (weak)
(see also chapter O2)
Rayleigh and NO-LIF in 2nd order
|
Download common
measurement report for detailed informations about flame, laser
beam position, pulse energy, ICCD gain,
etc:
Download
MS Word file:
|
|
Download
Davis file:
Download
ASCII file:
|
CCD
dynamic: 12 bit / ICCD
gain: 9,0 / entrance slit: 100 mm / sum of
pulses: 50 /
UV pulse energy:
about 3,0 to 1,2 mJ/pulse
|

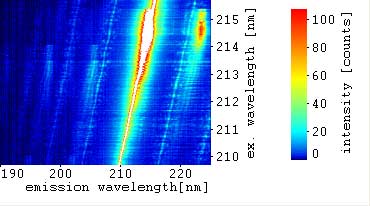

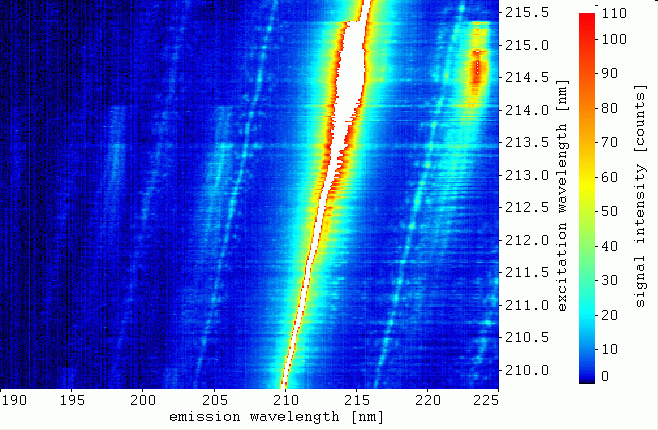

Grating:
1200 lines/mm, UV and VIS excitation, Emissions: 190 to 225 nm
|
EES,
point
of measurement:
center
(center of the flame)
Excitation
wavelength:
UV: 215,70 nm to 209,72 nm
VIS: 431,40 nm to 419,44 nm
(UV and VIS simultaneously)
Emission
wavelength:
190 nm to
225 nm |

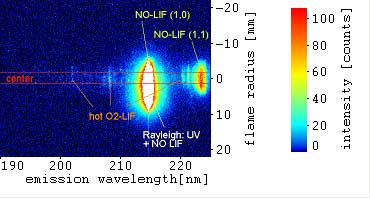

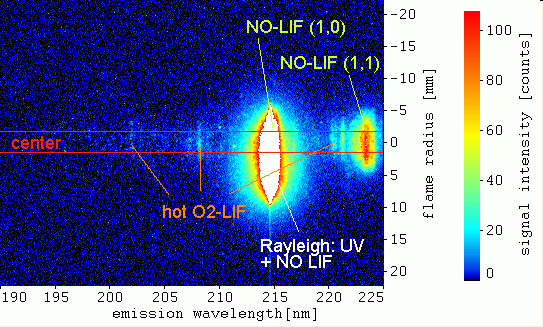

Single
Image:
local distribution of signals inside the flame
Excitation
wavelength:
UV: 214,56 nm
VIS: 429,12 nm
(UV and VIS simultaneously)
|
 |
 |
|
Detected
signals:
Rayleigh
scattering: UV
NO-LIF A-X / from A-X (1,0), (2,1), (3,2) excitations:
(starting
at 215,3 nm (1,0) and 214,0 nm (2,1))
NO-LIF A-X emissions:
(starting
at: 225 nm, 215 nm, 205 nm, 196 nm)
hot O2-LIF
(see also chapter O2)
|
Download common
measurement report for detailed informations about flame, laser
beam position, pulse energy, ICCD gain,
etc:
Download
MS Word file:
|
|
Download
Davis file:
Download
ASCII file:
|
CCD
dynamic: 12 bit / ICCD
gain: 9,0 / entrance slit: 100 mm / sum of
pulses: 50 /
UV pulse energy: not measured
|

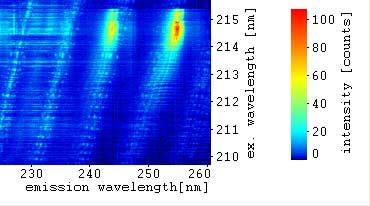

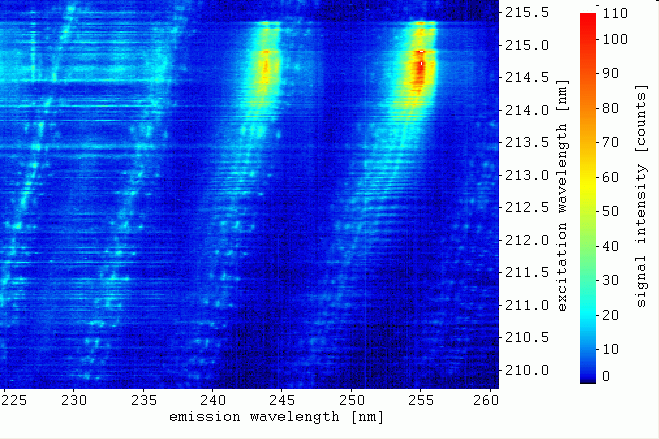

Grating:
1200 lines/mm, UV and VIS excitation, Emissions: 225 to 260 nm
|
EES,
point
of measurement:
center
(center of the flame)
Excitation
wavelength:
UV: 215,70 nm to 209,72 nm
VIS: 431,40 nm to 419,44 nm
(UV and VIS simultaneously)
Emission
wavelength:
225
nm to 260 nm |

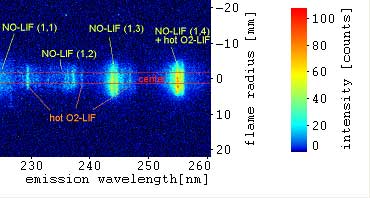

Single
Image:
local distribution of signals inside the flame
Excitation
wavelength:
UV: 215,24 nm
VIS: 430,48 nm
(UV and VIS simultaneously)
|
 |
 |
|
Detected
signals:
NO-LIF A-X / from A-X (1,0), (2,1) excitations:
(starting
at 215,3 nm (1,0) and 214,0 nm (2,1))
NO-LIF A-X emissions:
(starting
at: 256 nm (259 nm), 245 nm
(248 nm), (234 nm) (237 nm), (225 nm)
(227 nm))
hot O2-LIF
(see also chapter O2)
|
Download common
measurement report for detailed informations about flame, laser
beam position, pulse energy, ICCD gain,
etc:
Download
MS Word file:
|
|
Download
Davis file:
Download
ASCII file:
|
CCD
dynamic: 12 bit / ICCD
gain: 9,0 / entrance slit: 100 mm / sum of
pulses: 50 /
UV pulse energy: not measured
|

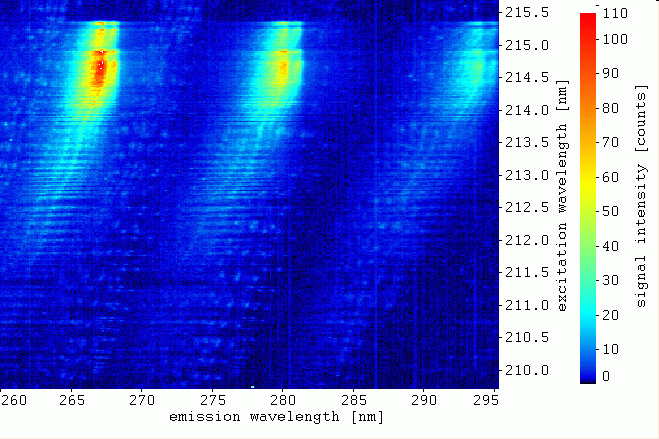

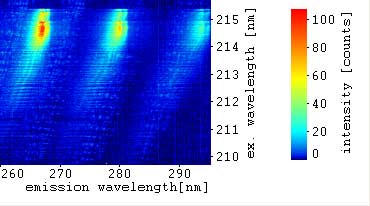

Grating:
1200 lines/mm, UV and VIS excitation, Emissions: 260 to 295 nm
|
EES,
point
of measurement:
center
(center of the flame)
Excitation
wavelength:
UV: 215,70 nm to 209,72 nm
VIS: 431,40 nm to 419,44 nm
(UV and VIS simultaneously)
Emission
wavelength:
260
nm to 295 nm |

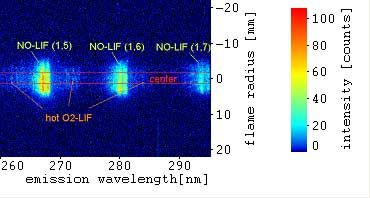

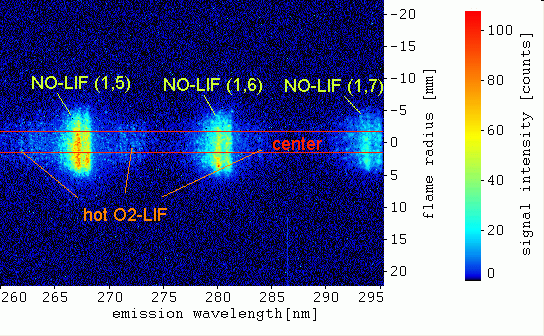

Single
Image:
local distribution of signals inside the flame
Excitation
wavelength:
UV: 215,24 nm
VIS: 430,48 nm
(UV and VIS simultaneously)
|
 |
 |
|
Detected
signals:
NO-LIF A-X / from A-X (1,0) excitation:
(starting
at 215,3 nm (1,0))
NO-LIF A-X emissions:
(starting
at: 295 nm, 281 nm, 268 nm)
hot O2-LIF
(weak) (see also chapter O2)
|
Download common
measurement report for detailed informations about flame, laser
beam position, pulse energy, ICCD gain,
etc:
Download
MS Word file:
|
|
Download
Davis file:
Download
ASCII file:
|
CCD
dynamic: 12 bit / ICCD
gain: 9,0 / entrance slit: 100 mm / sum of
pulses: 50 /
UV pulse energy: not measured
|

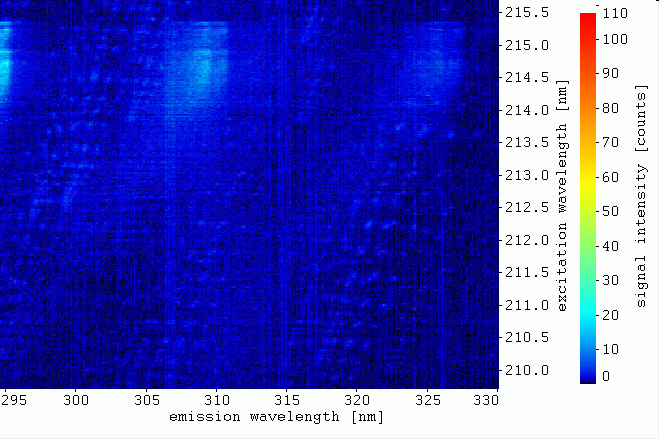

Grating:
1200 lines/mm, UV and VIS excitation, Emissions: 295 to 330 nm
|
EES,
point
of measurement:
center
(center of the flame)
Excitation
wavelength:
UV: 215,70 nm to 209,72 nm
VIS: 431,40 nm to 419,44 nm
(UV and VIS simultaneously)
Emission
wavelength:
295
nm to 330 nm |

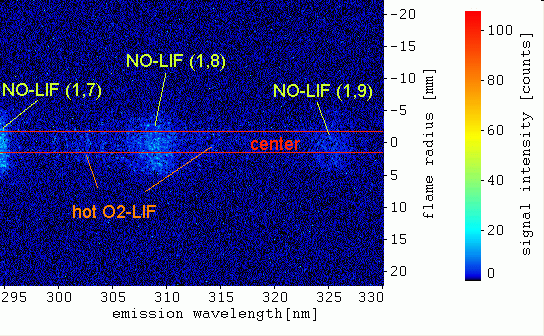

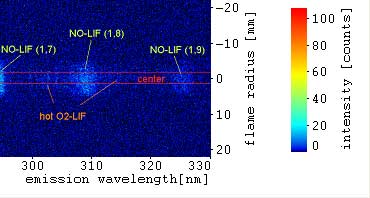

Single
Image:
local distribution of signals inside the flame
Excitation
wavelength:
UV: 214,96 nm
VIS: 429,92 nm
(UV and VIS simultaneously)
|
 |
 |
|
Detected
signals:
NO-LIF A-X / from A-X (1,0) excitation:
(starting
at 215,3 nm (1,0))
NO-LIF A-X emissions:
(starting
at: 327 nm, 311 nm, 295 nm)
hot O2-LIF
(weak) (see also chapter O2)
|
Download common
measurement report for detailed informations about flame, laser
beam position, pulse energy, ICCD gain,
etc:
Download
MS Word file:
|
|
Download
Davis file:
Download
ASCII file:
|
CCD
dynamic: 12 bit / ICCD
gain: 9,0 / entrance slit: 100 mm / sum of
pulses: 50 /
UV pulse energy: not measured
|

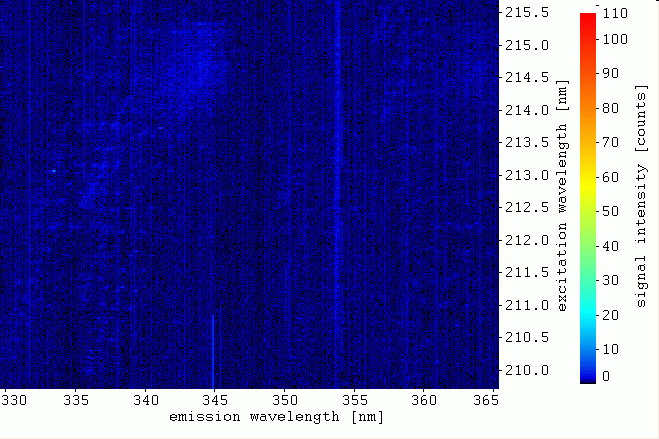

Grating:
1200 lines/mm, UV and VIS excitation, Emissions: 330 to 365 nm
|
EES,
point of measurement:
center
(center of the flame)
Excitation
wavelength:
UV:
215,70 nm to 209,72 nm
VIS:
431,40 nm to 419,44 nm
(UV and VIS simultaneously)
Emission
wavelength:
330
nm to 365 nm |

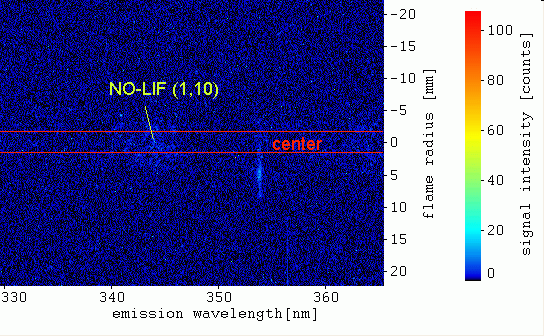

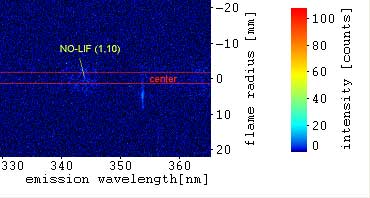

Single
Image:
local distribution of signals inside the flame
Excitation
wavelength:
UV: 214,74 nm
VIS: 429,48 nm
(UV and VIS simultaneously)
|
 |
 |
|
Detected
signals:
NO-LIF
A-X / from A-X (1,0) excitation:
(starting
at 215,3 nm (1,0))
NO-LIF A-X emissions:
(starting
at: 346 nm)
hot O2-LIF (weak) (see also chapter O2)
|
Download
common measurement report for detailed informations about
flame, laser beam position, pulse energy, ICCD gain, etc:
Download
MS Word file:
|
|
Download
Davis file:
Download
ASCII file:
|
CCD
dynamic: 12 bit / ICCD
gain: 9,0 / entrance slit: 100 mm / sum of
pulses: 50 /
UV pulse energy: not measured
|
