Nitrogen
Monoxide (NO) - LIF:
Transition:
A2S+
- X2P
(1,0) band of NO
Appearance
of the NO g-bands:
Degraded to the violet
Excitation
wavelength: 216,0 to 212,4 nm
Gas
composition:
NO (18 ppm), CO (14 ppm), SO2
(17 ppm), rest N2,
at ambient conditions (293 K)
Comment: Click
on picture to enlarge it. Open files with left mouse button. Download
files with right mouse button.
Grating:
100 lines/mm, UV and VIS excitation, Emissions: 210 to 245 nm
|
EES,
point
of measurement:
center
(center of the nozzle)
Excitation
wavelength:
UV:
216,00 nm to 212,40 nm
VIS:
432,00 nm to 424,80 nm
(UV and VIS simultaneously)
Emission
wavelength:
210 nm to
245 nm |
Single

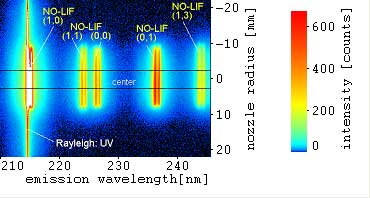

Image:
local distribution of signals 2 mm above the nozzle
Excitation
wavelength:
UV: 214,48 nm
VIS: 428,96 nm
(UV and VIS simultaneously)
|
 |
 |
|
Detected
signals:
Rayleigh
scattering: UV
NO-LIF A-X / from A-X (1,0) excitation:
(starting at 215,3 nm (1,0))
|
Download common
measurement report for detailed informations about flame, laser
beam position, pulse energy, ICCD gain,
etc:
Download
MS Word file:
|
|
Download
Davis file:
Download
ASCII file:
|
CCD
dynamic: 12 bit / ICCD
gain: 7,0 / entrance slit: 80 mm / sum of
pulses: 50 /
UV pulse energy:
about 3,2 to 2,9 mJ/pulse
|
Grating:
1200 lines/mm, UV excitation, Single Images
Detected
signals:
Rayleigh
scattering: UV
NO-LIF A-X / from A-X (1,0) excitation
|
Single
Image:
local distribution of signals 2 mm above the nozzle
Excitation
wavelength:
UV: 214,75 nm
Emission
wavelength:
205 nm to
240 nm
Download
Davis file:
Download
ASCII file:
CCD
dynamic: 12 bit / ICCD
gain: 7,0 / entrance slit: 80 mm / sum of
pulses: 50 /
UV pulse energy:
about 2,2 mJ/pulse |
Detected
signals:
NO-LIF A-X / from A-X (1,0) excitation
|
Single

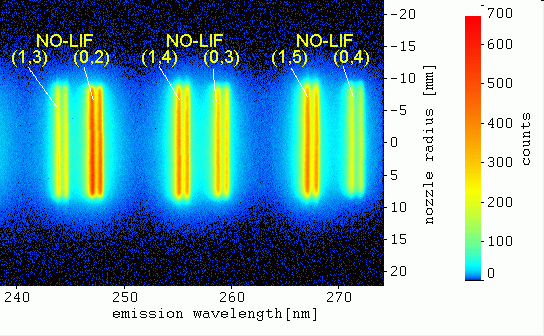

Image:
local distribution of signals 2 mm above the nozzle
Excitation
wavelength:
UV: 214,75 nm
Emission
wavelength:
240 nm to
275 nm
Download
Davis file:
Download
ASCII file:
CCD
dynamic: 12 bit / ICCD
gain: 7,0 / entrance slit: 80 mm / sum of
pulses: 50 /
UV pulse energy:
about 2,2 mJ/pulse |
Detected
signals:
NO-LIF A-X / from A-X (1,0) excitation
|
Single

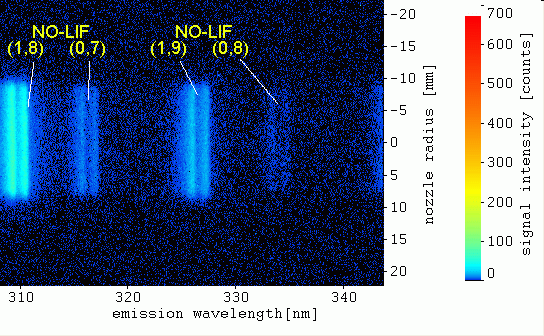

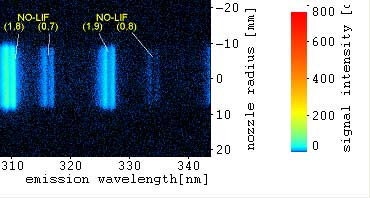

Image:
local distribution of signals 2 mm above the nozzle
Excitation
wavelength:
UV: 214,75 nm
Emission
wavelength:
275 nm to
310 nm
Download
Davis file:
Download
ASCII file:
CCD
dynamic: 12 bit / ICCD
gain: 7,0 / entrance slit: 80 mm / sum of
pulses: 50 /
UV pulse energy:
about 2,2 mJ/pulse |
Detected
signals:
NO-LIF A-X / from A-X (1,0) excitation
|
Single

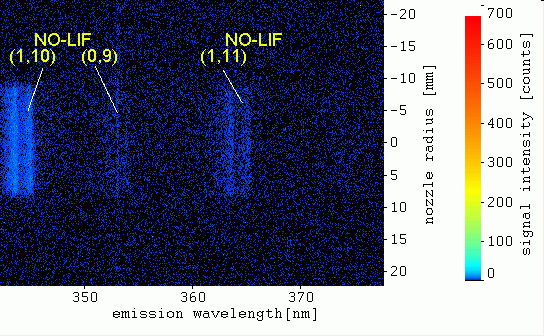

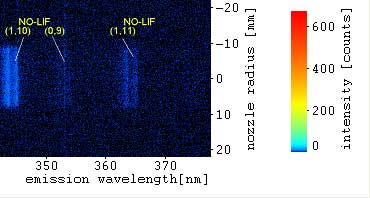

Image:
local distribution of signals 2 mm above the nozzle
Excitation
wavelength:
UV: 214,75 nm
Emission
wavelength:
310 nm to
345 nm
Download
Davis file:
Download
ASCII file:
CCD
dynamic: 12 bit / ICCD
gain: 7,0 / entrance slit: 80 mm / sum of
pulses: 50 /
UV pulse energy:
about 2,2 mJ/pulse |
Detected
signals:
NO-LIF A-X / from A-X (1,0) excitation
|
Single
Image:
local distribution of signals 2 mm above the nozzle
Excitation
wavelength:
UV: 214,75 nm
Emission
wavelength:
345 nm to
380 nm
Download
Davis file:
Download
ASCII file:
CCD
dynamic: 12 bit / ICCD
gain: 7,0 / entrance slit: 80 mm / sum of
pulses: 50 /
UV pulse energy:
about 2,2 mJ/pulse |
