Hydroxyl
Radical (OH) - LIF:
Transition:
A2S+
- X2P
(0,0) and (1,1) bands of OH
Appearance
of the OH A-X system: Degraded to the
red
Excitation
wavelength: 321,0 to 302,0 nm
Flame/Burner:
hydrogen/oxygen (H2/O2) flame of a welding torch
Comment: Click
on picture to enlarge it. Open files with left mouse button. Download files with
right mouse button.

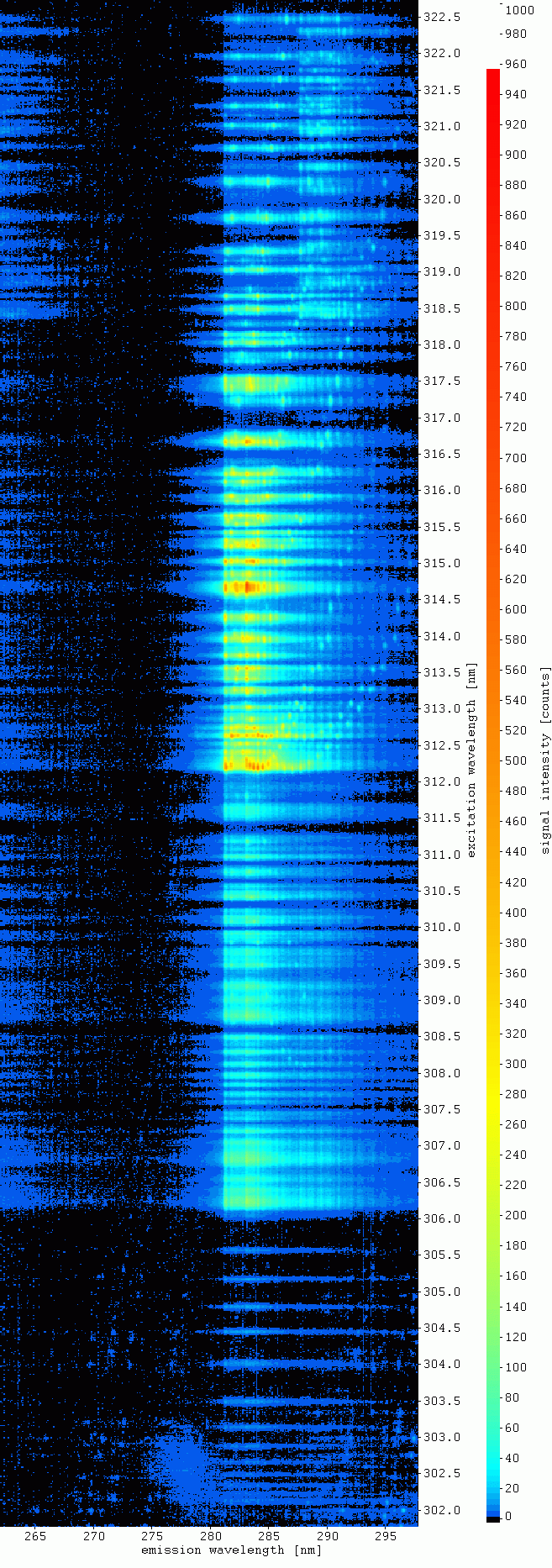

Grating:
1200 lines/mm, UV and VIS excitation, Emissions: 260 to 295 nm
|
EES,
point of measurement:
center
(center of the flame)
Excitation
wavelength:
UV:
322,75 nm to 301,78 nm
VIS:
645,50 nm to 603,56 nm
(UV and VIS simultaneously)
Emission
wavelength:
260
nm to 295 nm |

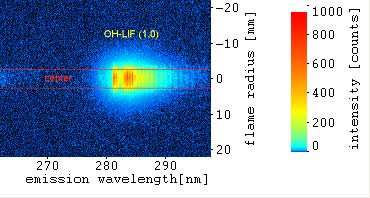

Single
Image:
local distribution of signals inside the flame
Excitation
wavelength:
UV: 312,22 nm
VIS: 624,44 nm
(UV and VIS simultaneously)
|
 |
 |
|
Detected
signals:
OH-LIF A-X / from A-X (0,0) and (1,1) excitations:
(starting
at: 302,2 nm (0,0) and 312,2 nm (1,1))
OH-LIF A-X emissions:
(261
- 270 nm, 278 - 300 nm)
|
Download
common measurement report for detailed informations about
flame, laser beam position, pulse energy, ICCD gain, etc:
Download
MS Word file:
|
|
Download
Davis file:
Download
ASCII file:
|
CCD
dynamic: 12 bit / ICCD gain: 9,9 / entrance slit: 80 mm
/ sum of pulses: 40 /
UV
pulse energy: not measured
|

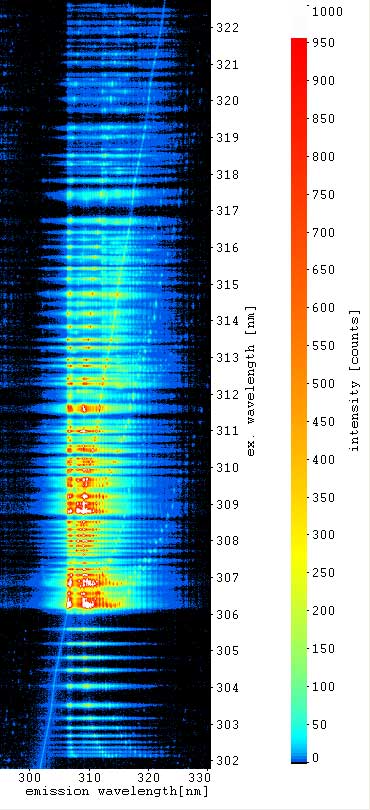

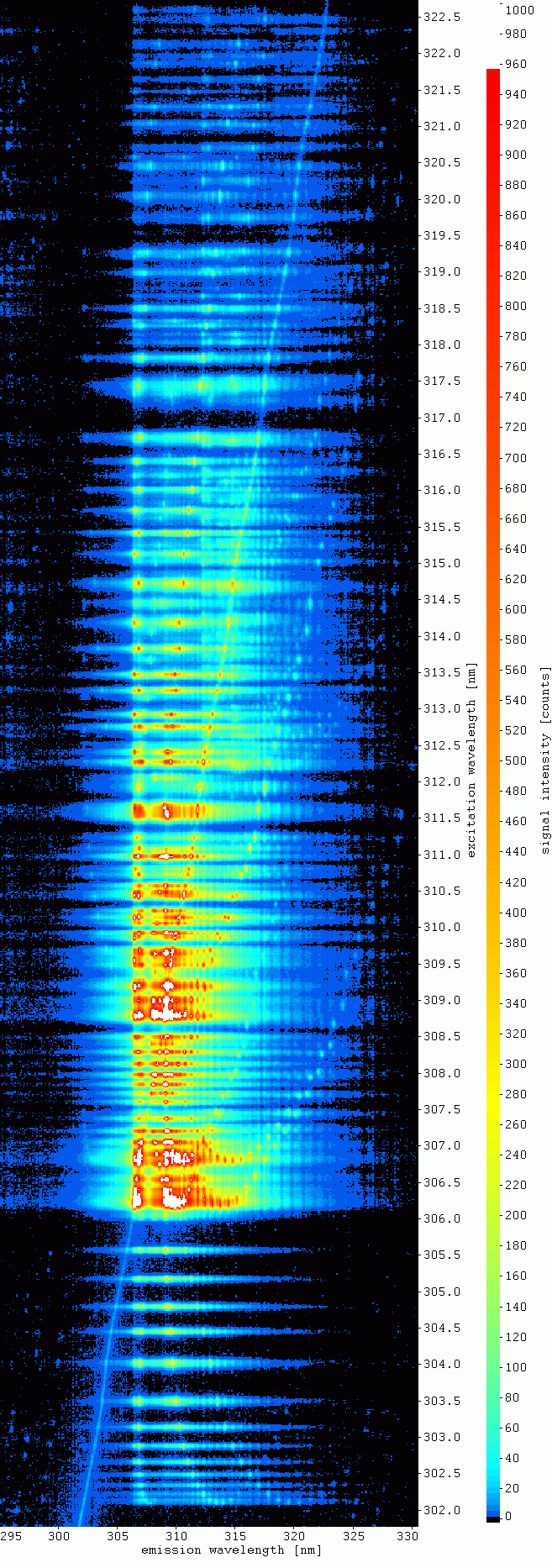

Grating:
1200 lines/mm, UV and VIS excitation, Emissions: 295 to 330 nm
|
EES,
point of measurement:
center
(center of the flame)
Excitation
wavelength:
UV:
322,75 nm to 301,78 nm
VIS:
645,50 nm to 603,56 nm
(UV and VIS simultaneously)
Emission
wavelength:
295
nm to 330 nm |

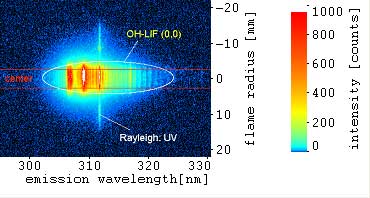

Single
Image:
local distribution of signals inside the flame
Excitation
wavelength:
UV: 311,62 nm
VIS: 623, 24 nm
(UV and VIS simultaneously)
|
 |
 |
|
Detected
signals:
Rayleigh
scattering: UV
OH-LIF A-X / from A-X (0,0) and (1,1) excitations:
(starting
at: 302,2 nm (0,0) and 312,2 nm (1,1))
OH-LIF A-X emissions:
(302
- 330 nm)
|
Download
common measurement report for detailed informations about
flame, laser beam position, pulse energy, ICCD gain, etc:
Download
MS Word file:
|
|
Download
Davis file:
Download
ASCII file:
|
CCD
dynamic: 12 bit / ICCD gain: 9,7 / entrance slit: 80 mm
/ sum of pulses: 10 /
UV
pulse energy: about ... to 1,2 mJ/pulse
|

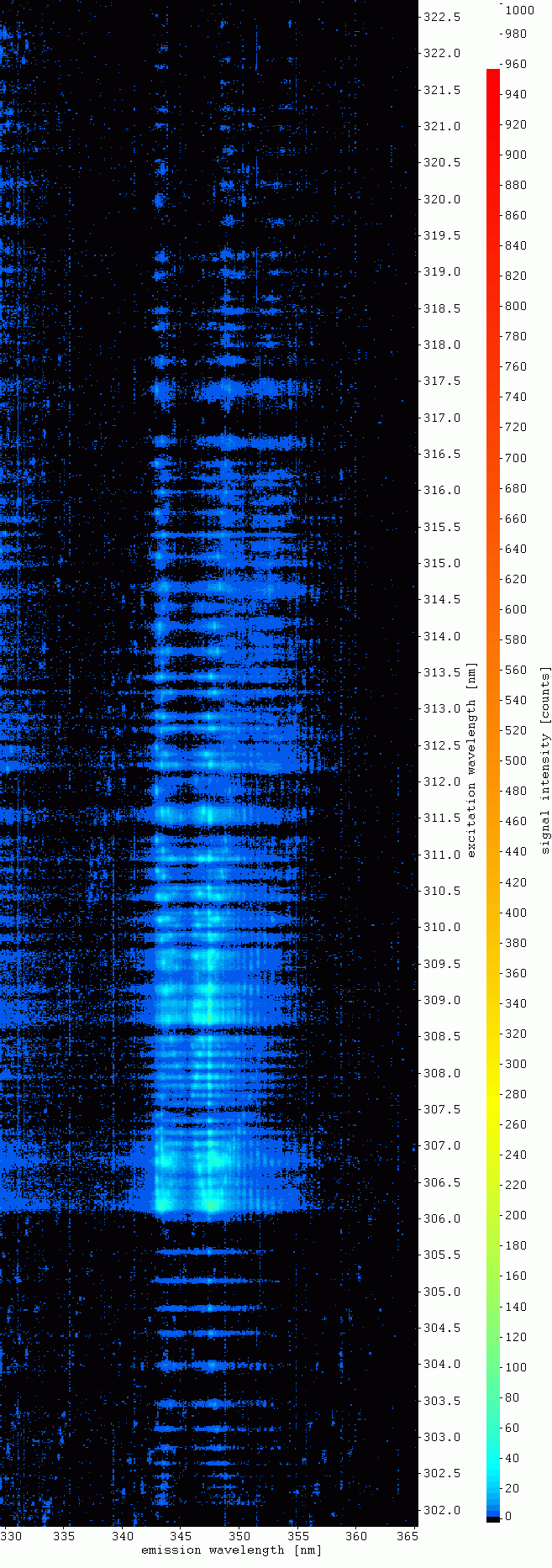

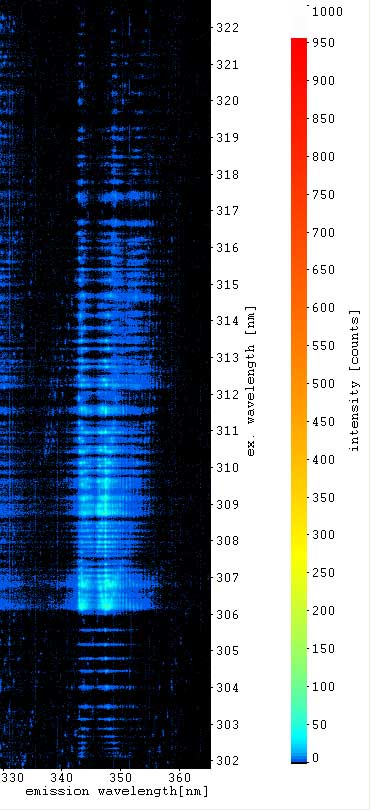

Grating:
1200 lines/mm, UV and VIS excitation, Emissions: 330 to 365 nm
|
EES,
point of measurement:
center
(center of the flame)
Excitation
wavelength:
UV:
322,75 nm to 301,78 nm
VIS:
645,50 nm to 603,56 nm
(UV and VIS simultaneously)
Emission
wavelength:
330
nm to 365 nm |

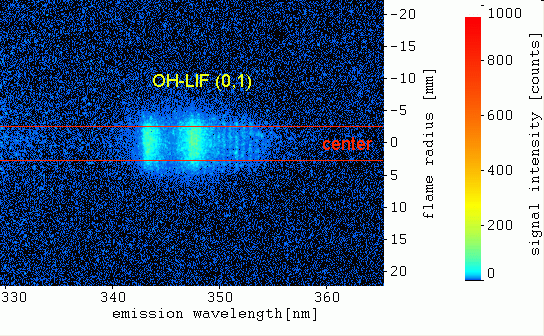

Single
Image:
local distribution of signals inside the flame
Excitation
wavelength:
UV: 306,19 nm
VIS:612,38 nm
(UV and VIS simultaneously)
|
 |
 |
|
Detected
signals:
OH-LIF A-X / from A-X (0,0) and (1,1) excitations:
(starting
at: 302,2 nm (0,0) and 312,2 nm (1,1))
OH-LIF A-X emissions:
(302
- 330 nm, 342 - 355 nm)
hot O2-LIF (weak)
(see also chapter O2)
|
Download
common measurement report for detailed informations about
flame, laser beam position, pulse energy, ICCD gain, etc:
Download
MS Word file:
|
|
Download
Davis file:
Download
ASCII file:
|
CCD
dynamic: 12 bit / ICCD gain: 9,9 / entrance slit: 80 mm
/ sum of pulses: 40 /
UV
pulse energy: about 0,8 to 1,3 mJ/pulse
|
